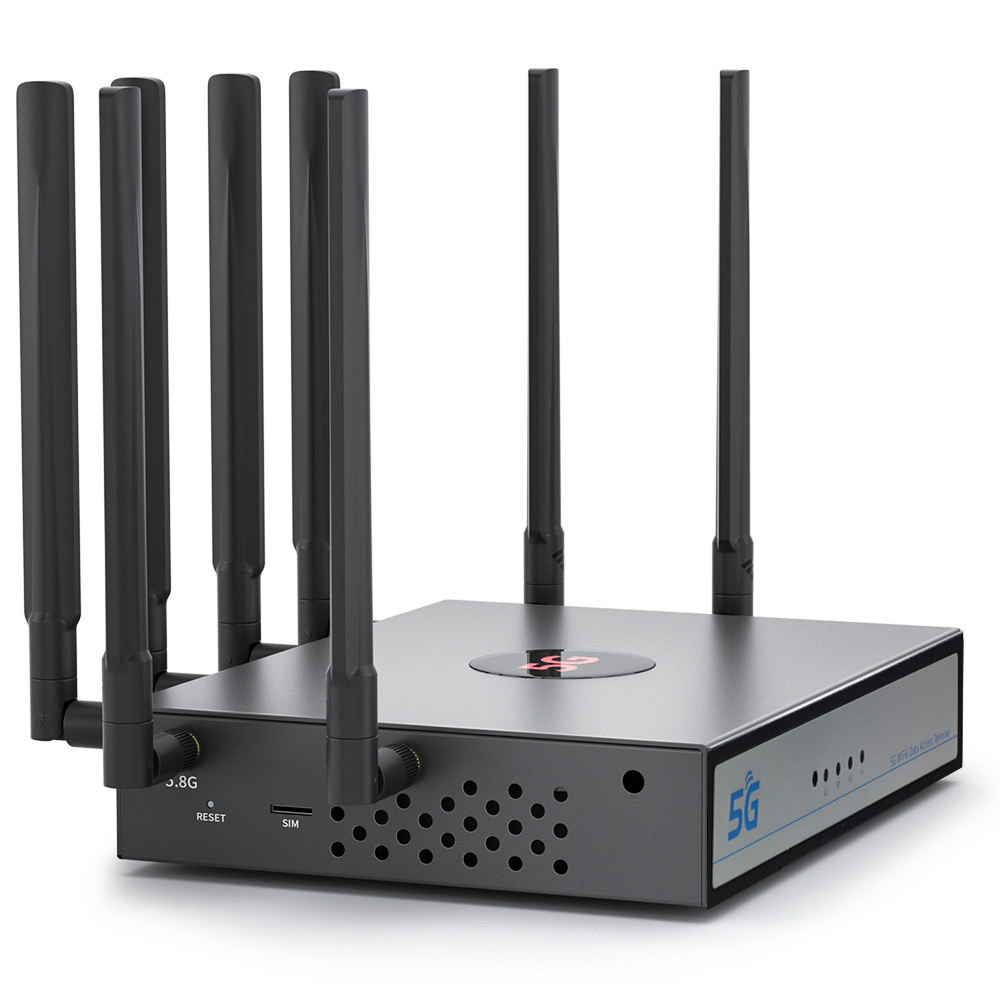

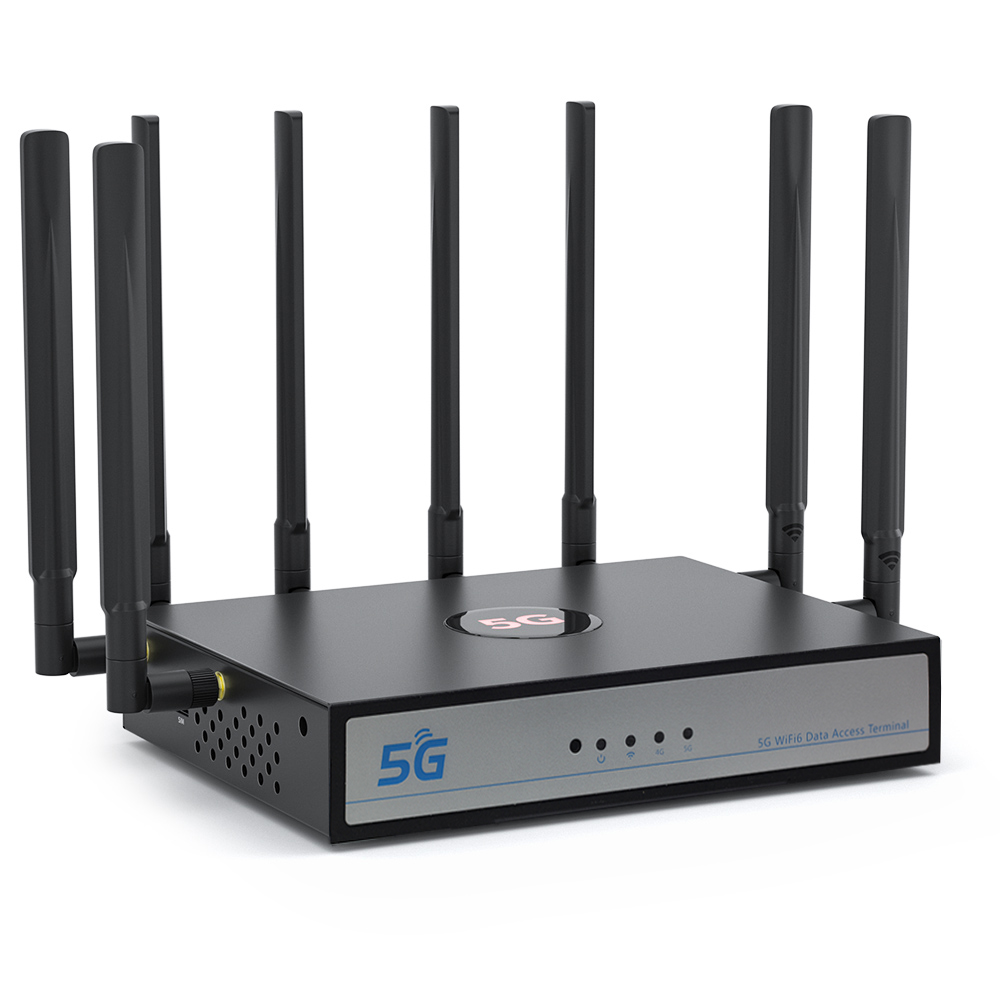

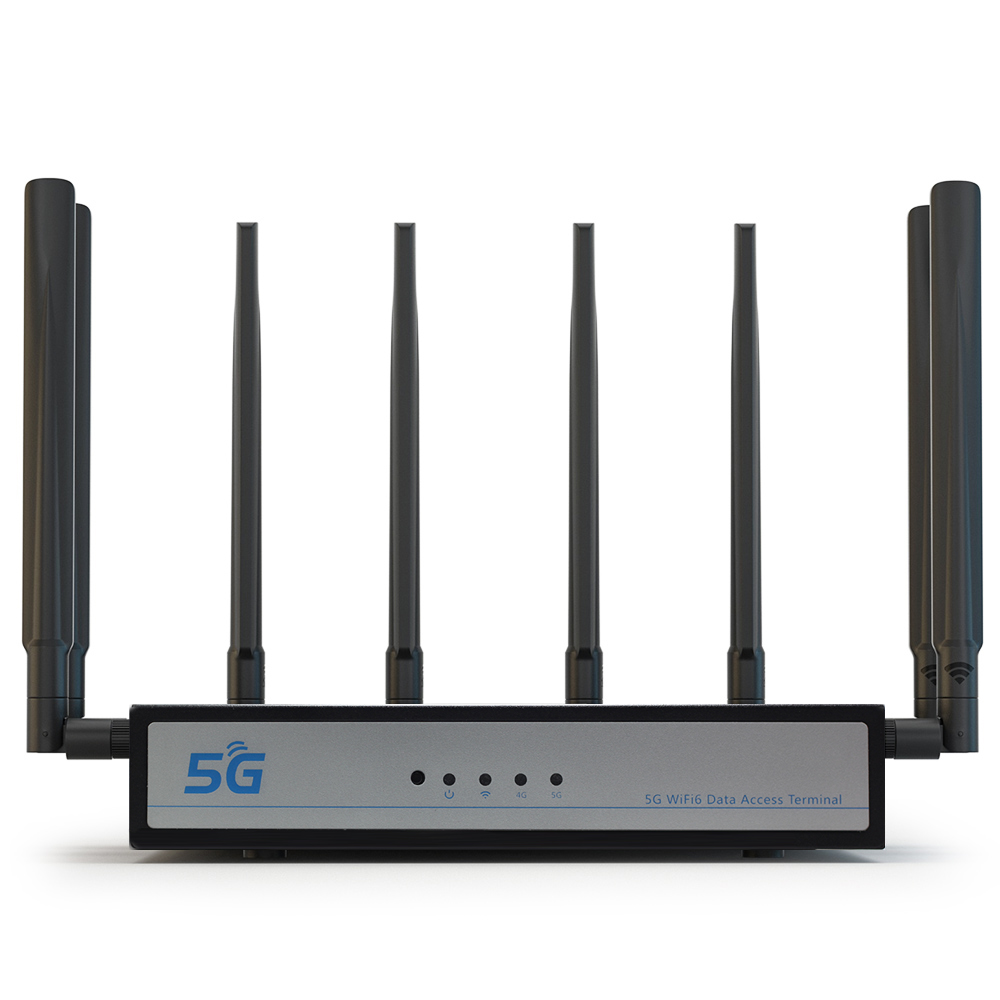

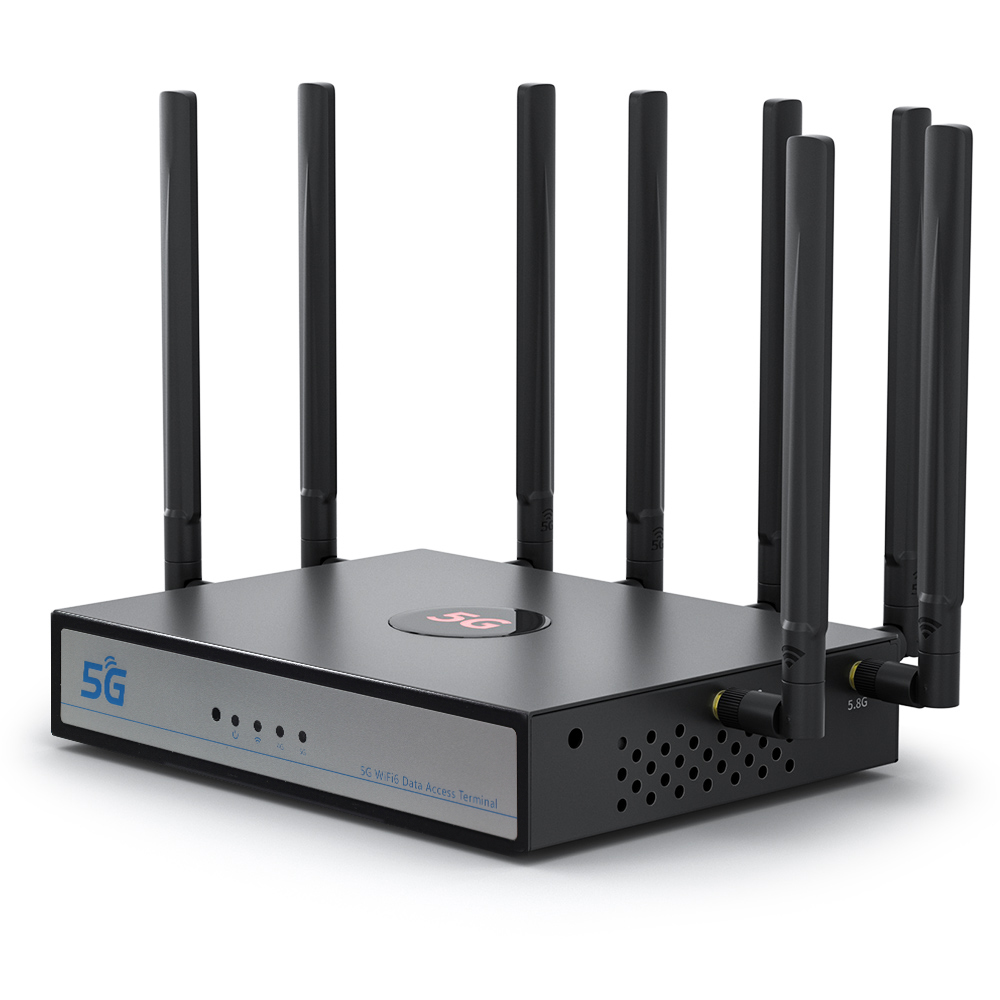

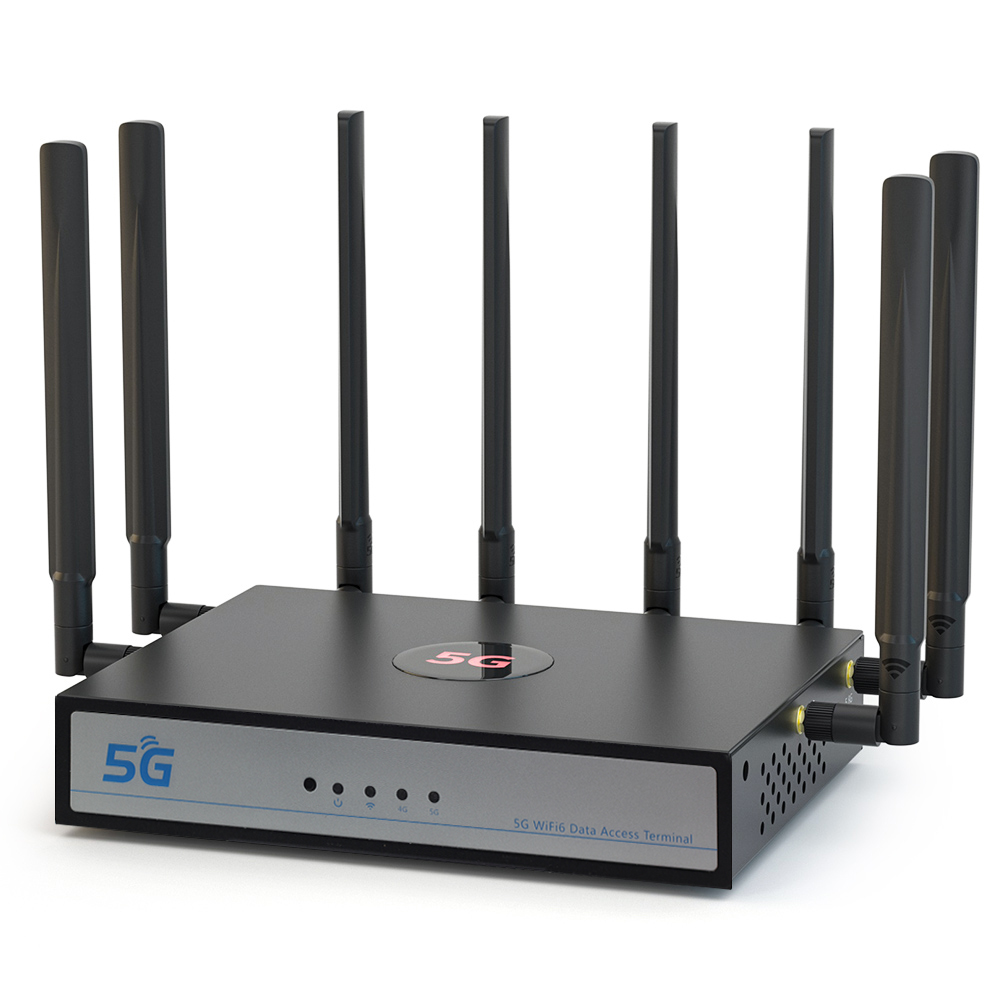

KBGT10 5G Industrial Router
- Detail
Key Features
5G CellularBuilt-in Qualcomm™ SDX62 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.

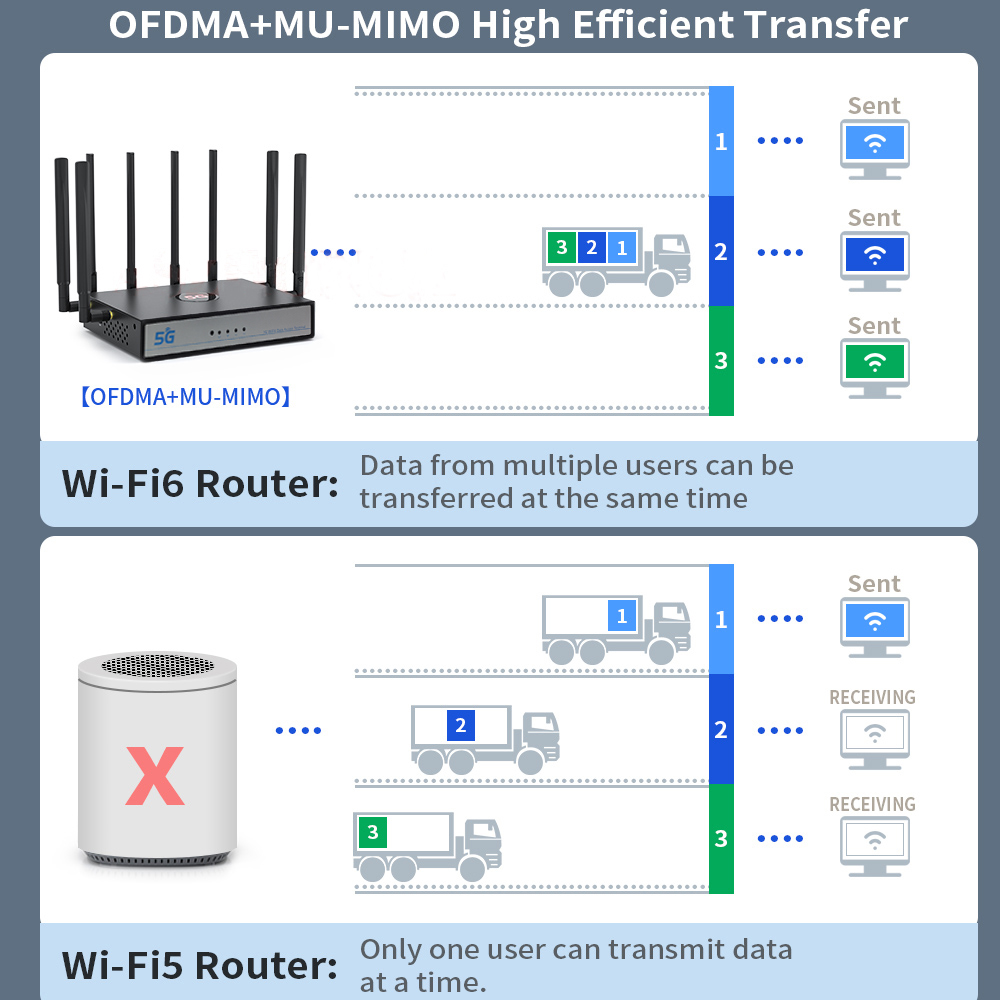

Wi-Fi 6 (802.11ax)The revolutionary Wi-Fi technology with OFDMA and DL MU-MIMO, faster wireless line,more client connection, lower latency, best network efficiency.
Higher Wireless CapacityDual-band 4 spatial streams, the CPE outputs 3100Mbps wireless bandwidth (600 + 2475), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It's the future-proof investment absolutely.
Hybrid MESH+ NetworkingThe CPE inherits the mesh technology and supports "wired / wireless" hybrid networking. It's so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.
Physical Data
| Interface |

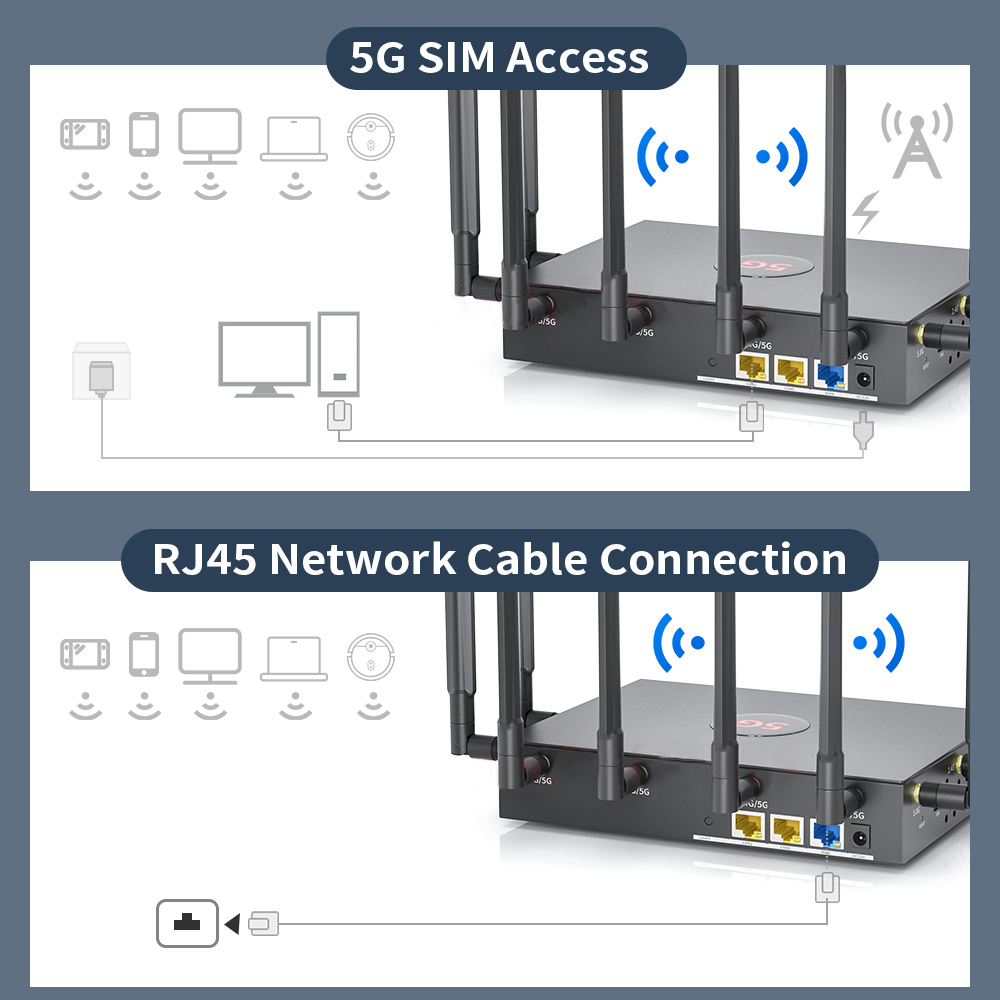

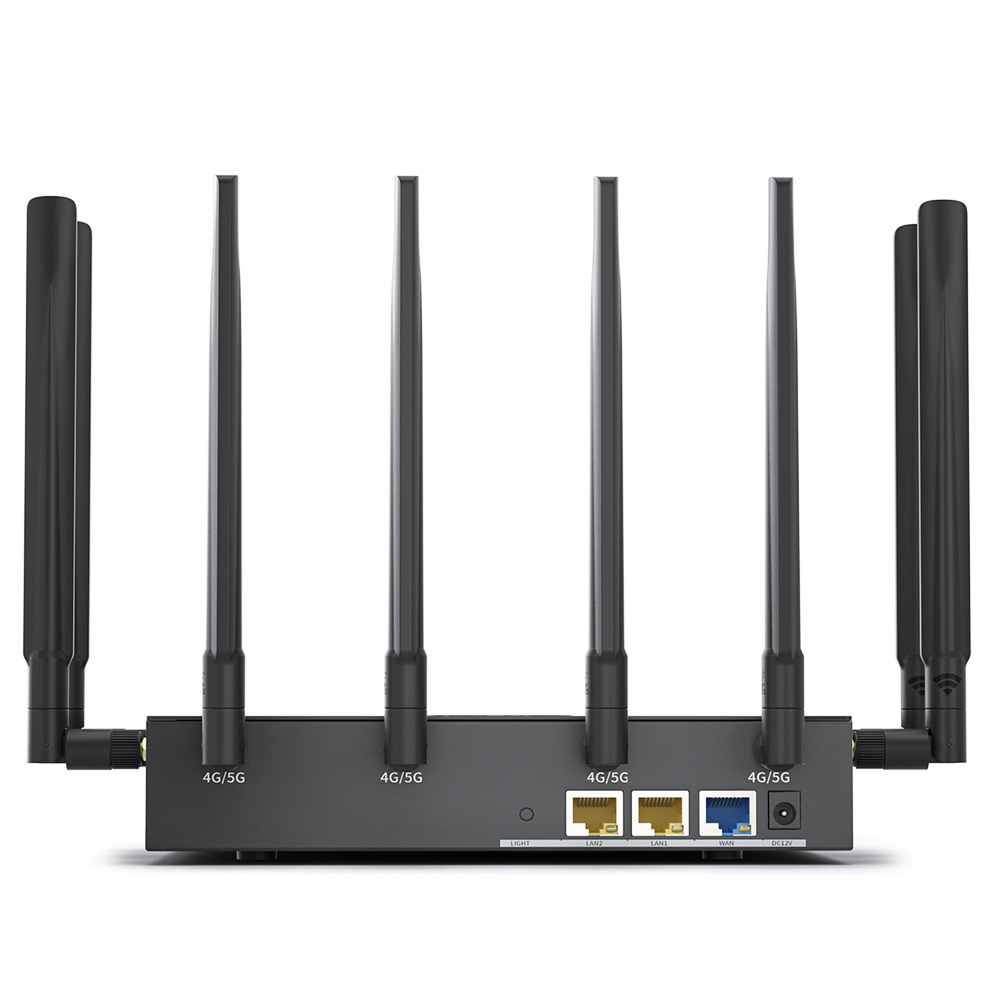

2*10/100M/1000 LAN 1*10/100M/1000 WAN 1*12V 2A DC Power Input 1 Reset Button 1 Breathing Light Button 1 SIM card slot 1 MESH Networking Button |
| Network Extension | MESH |
| Reset | Reset(Long press 10 seconds to restore the factory settings) |
| MESH | Networking: short press (blue networking light flashes) |
| LED Indicator | Power, Breathing Light, 4G Signal, 5G Signal, WiFi Signal |
| Power Consumption | <20W |
| Environment |
Operating Temperature:-20ºC~+50ºC Storage Temperature:-40ºC~+70ºC Humidity:5%~95% (Non condensation) |
| Dimension | 210*160*40MM |
| Weight | 1.7KG(Includes color box accessories) |
| Units per Case | 10pcs |
| Case Dimensions | 52.8*40*28.3CM |
| Case Weight | 18KG |
Technical Specifications
| CPU | MT7981AT+SDX62 |
| Flash | 16MB |
| RAM | 2Gb |
| WiFi Frequency | 2.4G&5.8G |
| WiFi Standard | 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz：802.11a/n/ac/ax 2T2R MIMO |
| WiFi | 2.4GHz :600Mbps ,5GHz :1200Mbps |
| 5G Standard | 3GPP Release 15 NSA/SA operation, Sub-6 GHz |
| 5G Network Mode | NSA/SA |
| 5G/4G Data Rate | 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps；UP 200 Mbps |
| 5G Frequency Bands | 5G NR NSA |
| n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 | |
| 5G NR SA | |
| n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 | |
| MIMO | |
| Downlink：4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 | |
| Uplink：2 × 2 MIMO on n41 | |
| 4G&3G Frequency Bands | LTE Category |
| Downlink Cat 19/ Uplink Cat 18 | |
| LTE-FDD | |
| B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 | |
| LTE-TDD | |
| B34/B38/B39/B40/B41/B42/B43/B48 | |
| LAA | |
| B46（Support 2 × 2 MIMO） | |
| Downlink 4 × 4 MIMO | |
| B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 | |
| WCDMA | |
| B1/B2/B3/B4/B5/B6/B8/B19 | |
| Modulation Mode | 5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM |
| WIFI:1024-QAM / OFDMA | |
Product features
| Model | KB-GT10 |
| 5G Baseband | Qualcomm® Snapdragon™ X62 Modem |
| 5G Network Modes | SA (standalone), NSA (non-standalone) |
| 5G Standards | 3GPP Release 15 |
| 4G LTE Category | Down Cat 19/ UP Cat 18 |
| WiFi Type | WiFi6 and 802.11ac / 802.11n backward |
| WiFi Frequency | 600Mbps @ 2.4GHz; 1200Mbps @ 5.1-5.8GHz |
| MESH | MESH+ hybird |
| VPN | L2TP, PPTP |
| SIM Slot | 1* Nano-SIM |
| Ethernet | 1*1Gbps WAN,2*LAN 1Gbps |

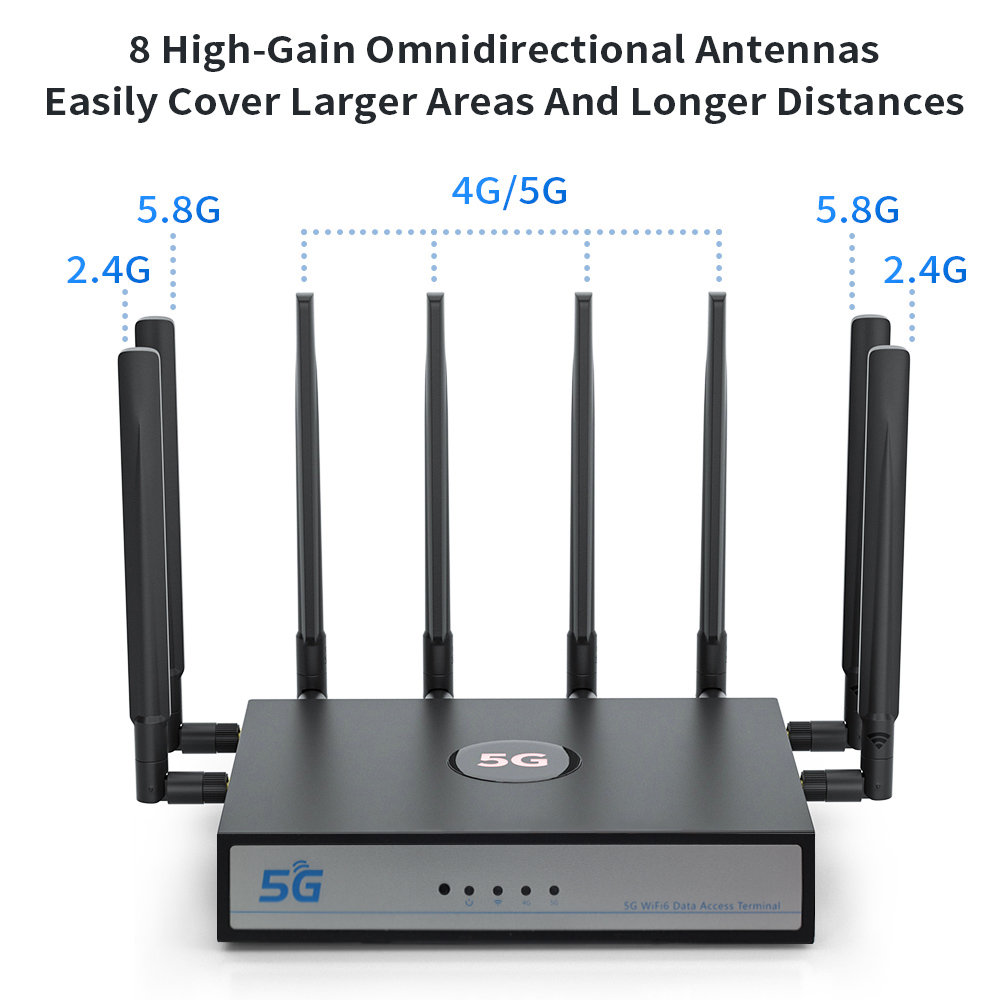

| Antenna | 8pcs: 4pcs(5G)+ 2pcs(4G)+ 2pcs(WiFi) |
| Power Consumption | <20W |
| Power Supply | DC 12V/2A |
