Model

KB16HM01

Product Name

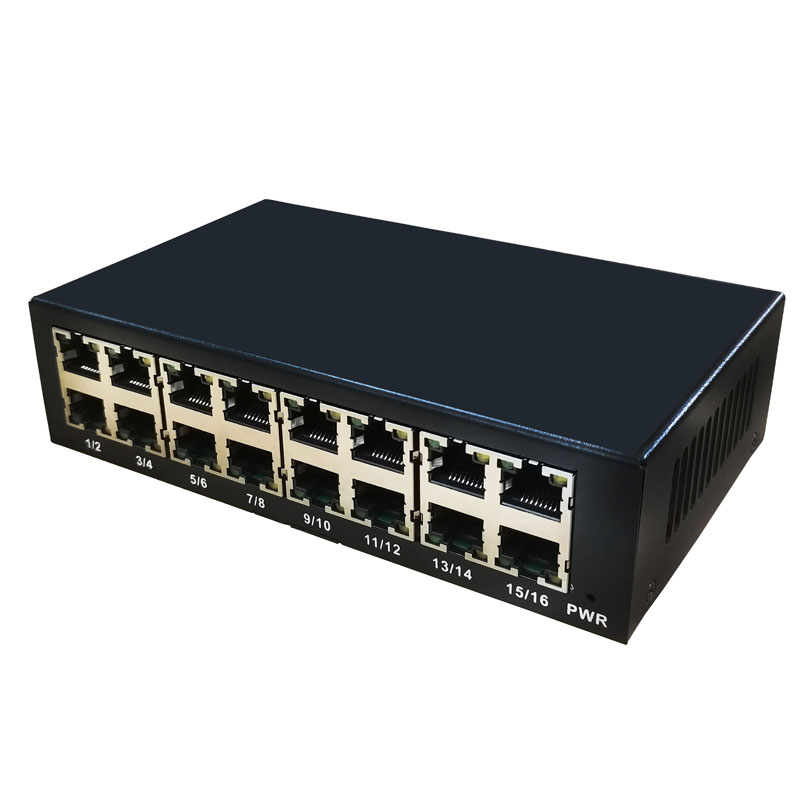

16-port 100Mbps switch

Fixed port

16*10/100Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX

IEEE 802.3x

Network port characteristics

10/100BaseT（X） Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

4.8Gbps （ non-blocking ）

Packet forwarding rate

2.3Mpps

MAC address table

2K

Packet forwarding cache

1.5M

Twisted pair transmission

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

Power Consumption

standby power ≤10W;

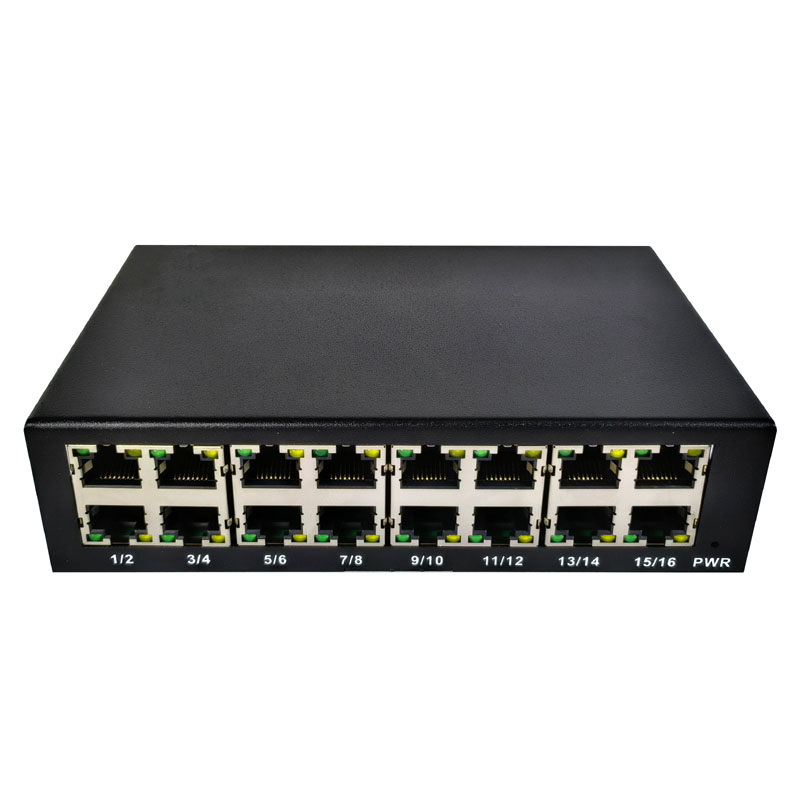

LED indicator lamp

PWR: Power indicator light

1-16: Network indicator light

Power supply

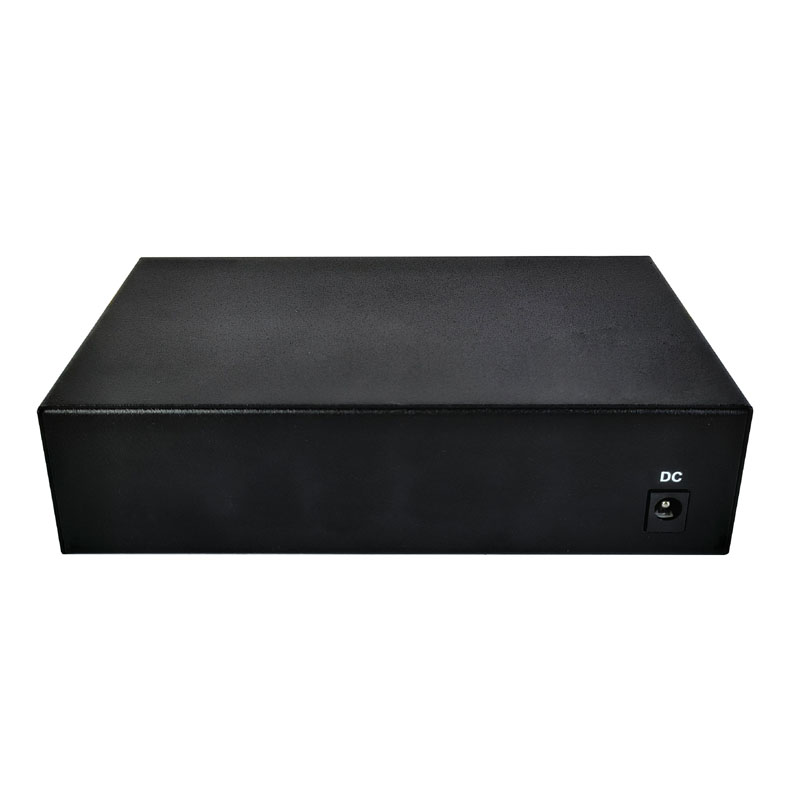

DC 5-12V

Working temperature/humidity

-10～+55°C;5%～90% RH  No condensation

Storage temperature/humidity

-40～+75°C;5%～95% RH  No condensation

Product /packaging size（L*W*H）

160mm*95mm*41mm

Net /Gross weight （kg）

0.7KG

Installation method

Desktop style

protection grade

IP30

safety certification

CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;

Warranty period

Complete machine for 3 years (excluding accessories)
