Model

KB08HM01

Product Name

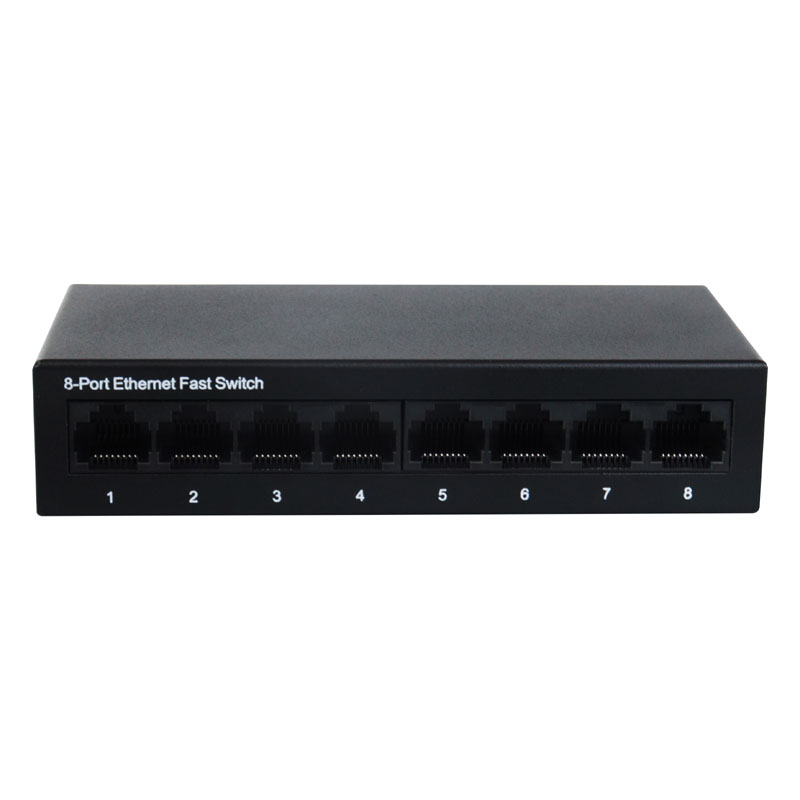

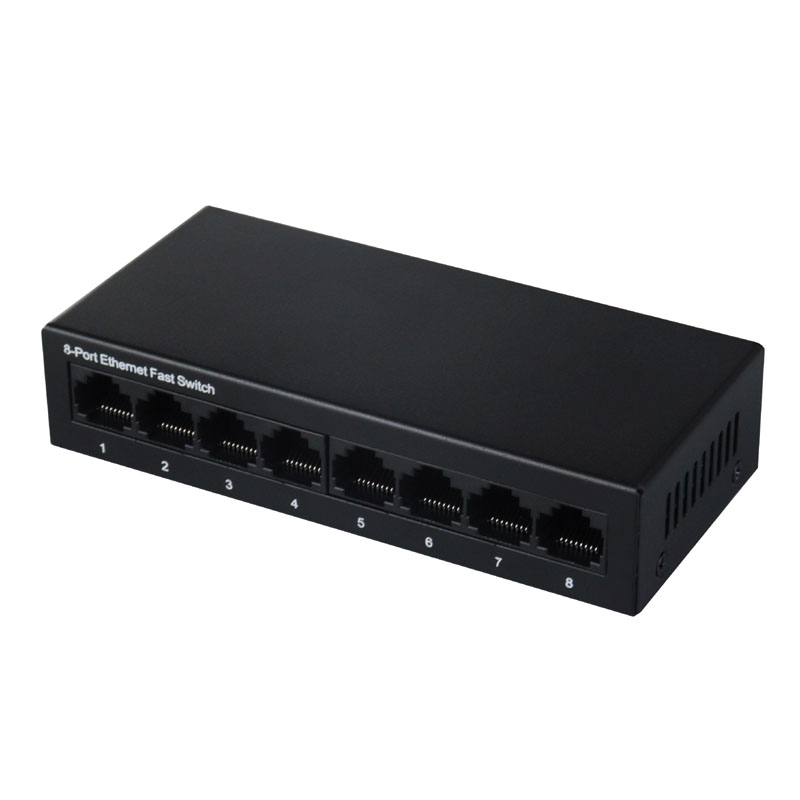

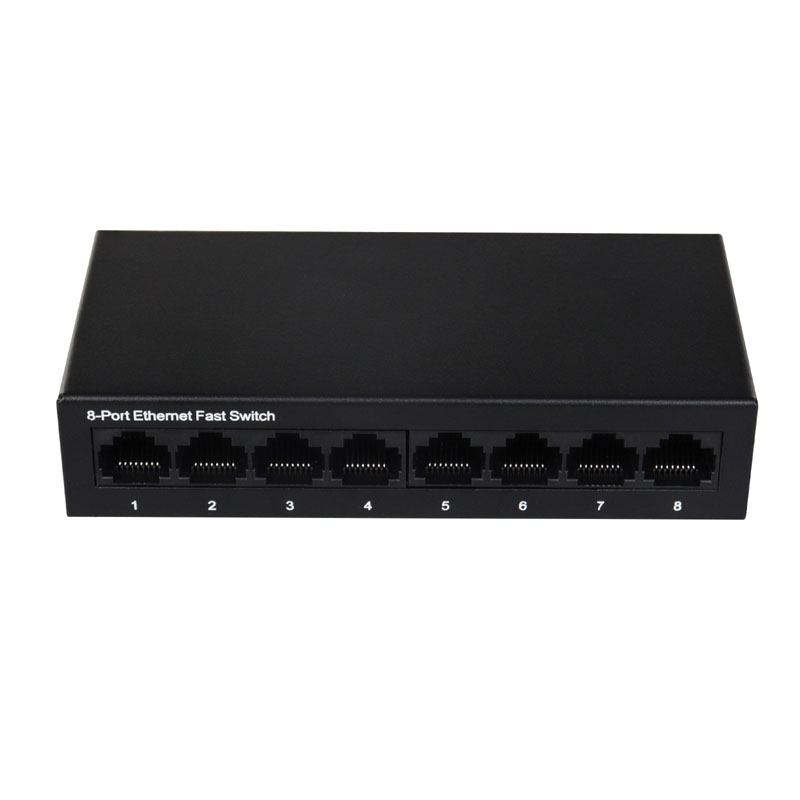

8-port 100Mbps switch

Fixed port

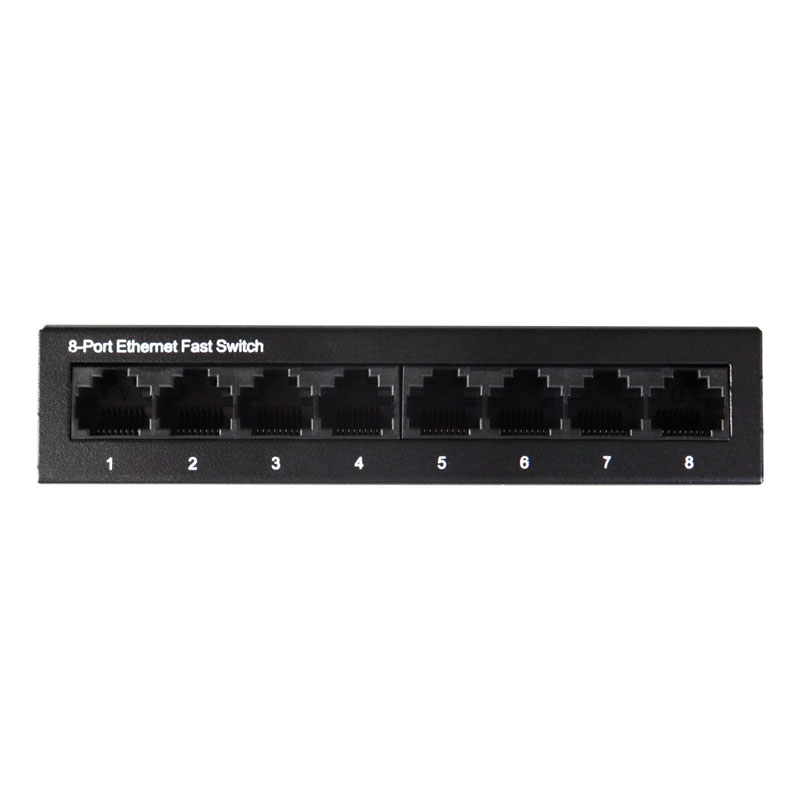

8 * 10/100Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX

IEEE 802.3x

Network port characteristics

10/100BaseT（X） Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

1.6Gbps （ non-blocking ）

Packet forwarding rate

1.15Mpps

MAC address table

1K

Packet forwarding cache

768K

Twisted pair transmission

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

Power Consumption

standby power ≤3W；

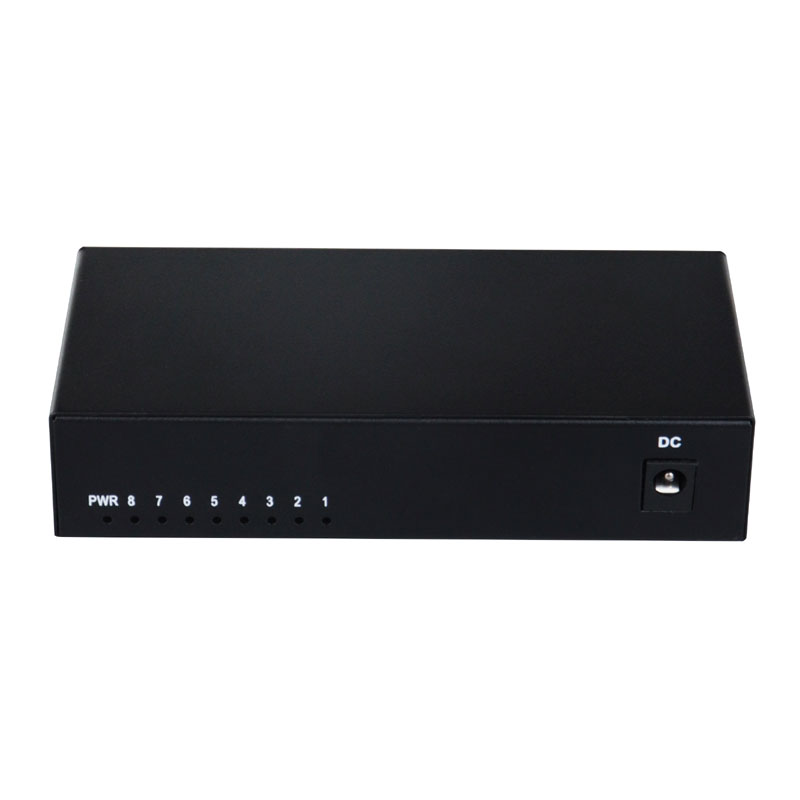

LED indicator lamp

PWR: Power indicator light

1-8: Network indicator light

Power supply

External switch power supply  DC：5V

Working temperature/humidity

-10～+55°C；5%～90% RH  No condensation

Storage temperature/humidity

-40～+75°C；5%～95% RH  No condensation

Product /packaging size（L*W*H）

127mm*60mm*27mm

132mm*75mm*62mm

Net /Gross weight （kg）

168g/245g

Installation method

Desktop style

protection grade

IP30

safety certification

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty period

Complete machine for 3 years (excluding accessories)
