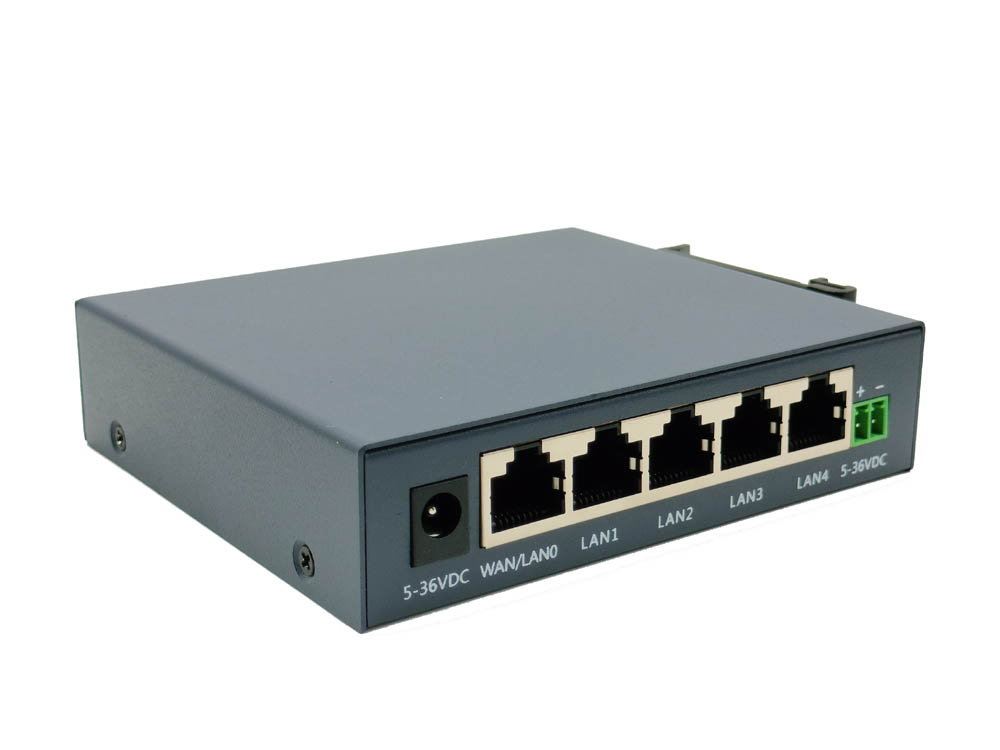

KB8628 4G Industrial Router

Detail

1. Product Description

KB8628 industrial 4G CPE router. It is an industrial IoT communication device. It is compatible with 3G(WCDMA/EVDO/TD-SCDMA), 4G(FDD-LTE/TD-LTE) networks across the board. It has industrial-grade protection, wide temperature and wide voltage design, and can easily build a high-speed and stable wireless transmission network. Use public NR, LTE network (or VPDN private network) to provide users with wireless long-distance data transmission services.

This router adopts high-performance industrial-grade 32-bit dual-core communication processor and industrial-grade communication module, uses embedded real-time operating system as the software support platform, and provides 4 Ethernet LAN, and 1 Ethernet WAN at the same time. Interface, can connect serial device and Ethernet device at the same time, realize data transparent transmission and routing and other functions.

2. Parameter indicators

l Adopt high-performance industrial-grade communication module

l Support 3G (WCDMA/EVDO/TD-SCDMA), 4G (FDD-LTE/TD-LTE)

l Using metal shell, protection level IP30

l Standard RJ45 (Ethernet) interface built-in lightning protection (6000V electromagnetic isolation included)

l Wide voltage and current input: DC5-30V/1A; ultra-high voltage automatic power-off protection

l Anti-power reverse connection protection, anti-surge protection; ESD anti-static protection

l Software and hardware watchdog anti-crash design, if the router crashes due to special circumstances, it will automatically power off and restart to ensure stable and reliable operation of the device

l Automatic detection of network disconnection, automatic restart of dial-up failure, scheduled restart and other functions

l Support multiple DDNS dynamic domain name services

l Port mapping, DMZ host and other functions

l Support VPN client PPTP Client, L2TP Client, OpenVPN Client

l Base station positioning function, etc.

3. Hardware Specifications

Interface

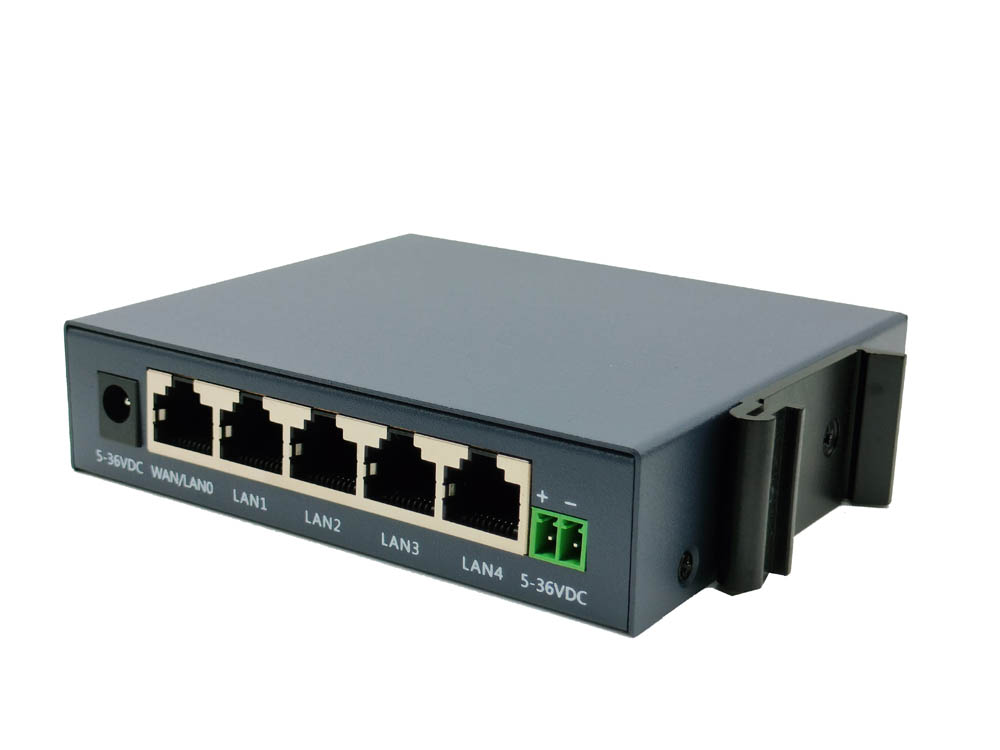

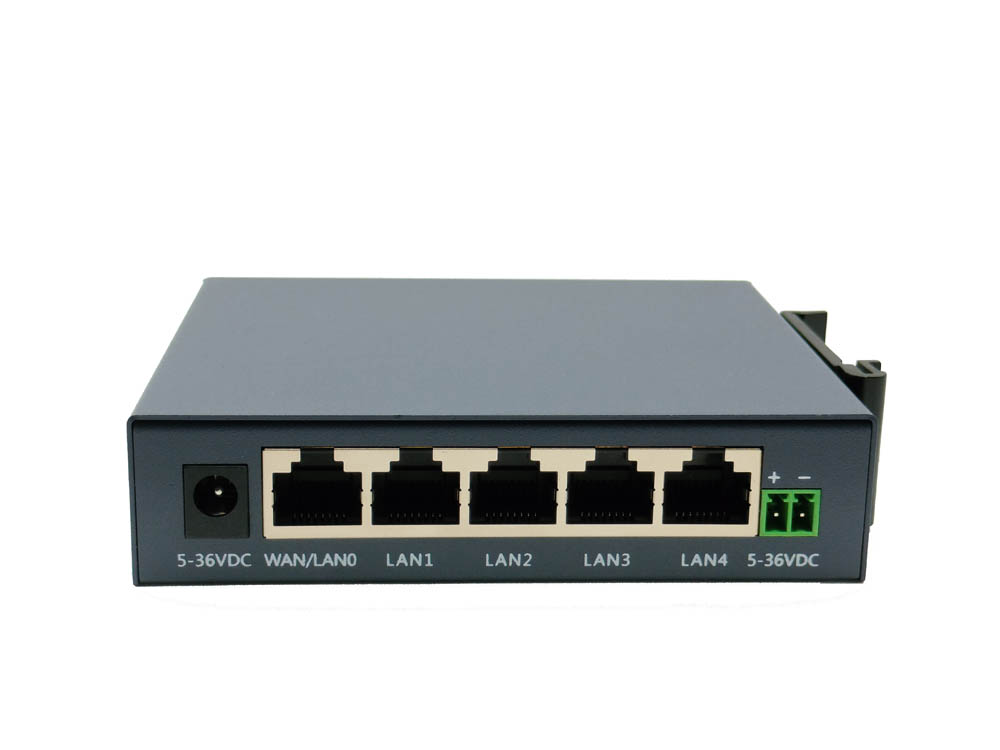

Ethernet interface		5* 10/100Mbps Fast Ethernet interface, WAN/LAN adaptive (4 LANs in 4G mode)
SIM card holder		MICRO SIM x 2
Antenna connector		SMA external rotation inner hole: 3G/4G network: SMA x 1 WIFI network: 1
Reset button		1
Mechanical properties

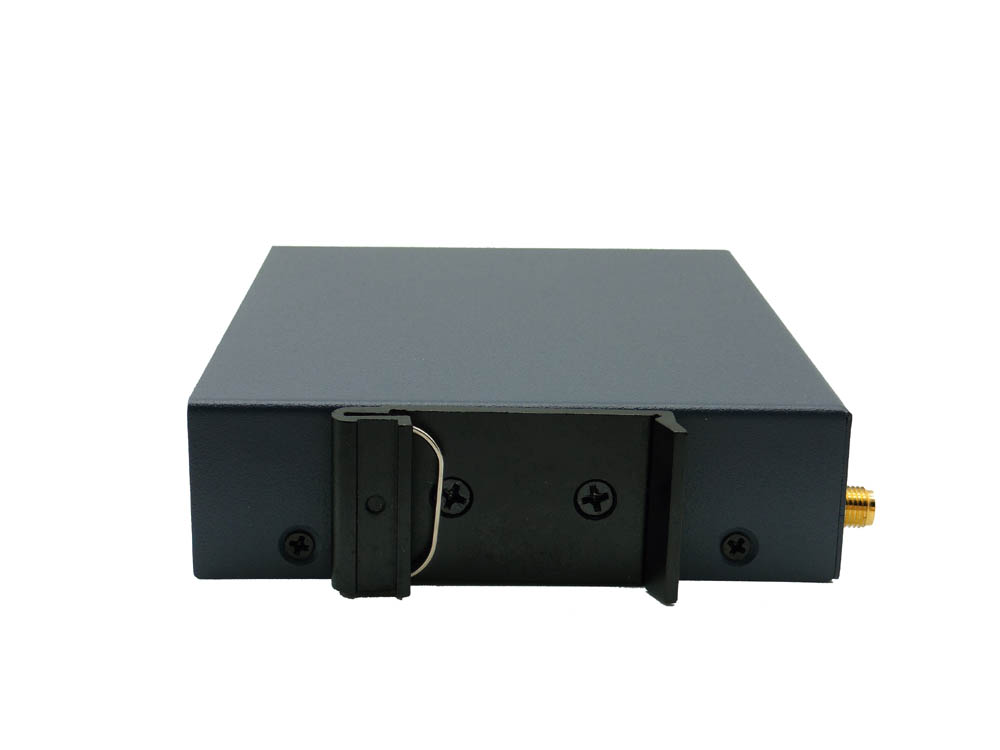

Installation method		rail, wall mount
Dimensions		Length, width and height: 1189525mmmm (excluding antenna interface)
shell		Aluminum alloy
Protection class		IP40
cooling method		Thermally conductive silicone shell for heat dissipation
Weight (g)		175g
power supply
Power interface		Terminal block
power input		DC5～36V, anti-reverse polarity protection
reverse polarity protection		Support
Ambient temperature and humidity
environment humidity		5 ~ 95% (no frosting)
storage temperature		-40 ~ 85℃
Operating temperature		-40°C ~ +75°C
Wi-Fi
Transmit power	802.11n HT20 MCS7 : +13.5dBm 802.11n HT40 MCS7 : +13.5dBm 802.11b CCK: +18 dBm 802.11g OFDM: +13.5dBm
Data rate	802.11n: up to 300Mbps 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Receiver Sensitivity	-66dBm at 150Mpbs -73dBm at 54Mpbs -86dBm at 11Mpbs
LED		SYS system running indicator: Flashes once per second, indicating that the system is running normally Flashing quickly indicates firmware is being upgraded, or the reset button is being pressed to reset
		NET external network connection indicator: In 4G mode, flashing quickly indicates that 4G is dialing Steady on, indicating that the WAN port is successfully connected to the Internet Long off, indicating that the WAN port fails to access the Internet

4. Software Support

network interconnection
network access	3G/4G dial-up Internet access, support APN, VPDN. Built-in hundreds of APN information around the world, after inserting the SIM card, the router can automatically match the Internet
access authentication	Support CHAP/PAP/MS-CHAP/MS-CHAPV2/none
network standard	Support LTE/WCDMA(HSPA+)/TD-SCDMA/EVDO/EDGE/GPRS
LAN protocol	Support ARP, Ethernet，STP
WAN protocol	Support static IP, DHCP, PPPoE, PPTP, L2TP
Number of users supported	Wired: 253; Wireless:32
Network protocol
IP application	Support tcping, ping, traceroute, DHCP server/wireless relay/client, dynamic domain name DDNS, telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6
IP routing	Support static routing, IGMP Proxy
TTL	Custom client host TTL value
Network security
firewall	Support stateful packet inspection (SPI), prevent denial of service (DDoS) attacks
	Supports filtering of multicast/Ping packets, Access Control List (ACL)
	DMZ, MAC filtering, whitelist/blacklist access control
	Support NAT, PAT, DMZ, port mapping, virtual server
Data Security	Support L2TP、PPTP、OpenVPN、CA
reliability
Backup function	Interface backup, 4G, wired and disconnected network backup
Link online detection	4G status detection, automatic redialing when disconnected or bad signal
	VPN disconnection redial interval definition, and dialing times control
	WAN side sends heartbeat detection packet detection, automatic connection when disconnected timed restart
Bridge Multi-Gateway	Support multi-LAN setup, the router has two gateways (two intranets)
Secondary development
shell script	Custom script function to achieve custom management of routers and related functions
system interface	The router provides a secondary development parameter interface (http), such as obtaining the router status, setting router-related functions, etc. Convenient mobile APP, applet, cloud server development
network management
Configuration method	Support local or remote HTTP, HTTPS, Telnet, SSH, and intranet penetration
Upgrade method	Support local or remote WEB, TFTP, FTP, SFTP server, intranet penetration remote
log function	Support local system log, remote log. Important logs are saved when power off
log function	Support log power-off saving
