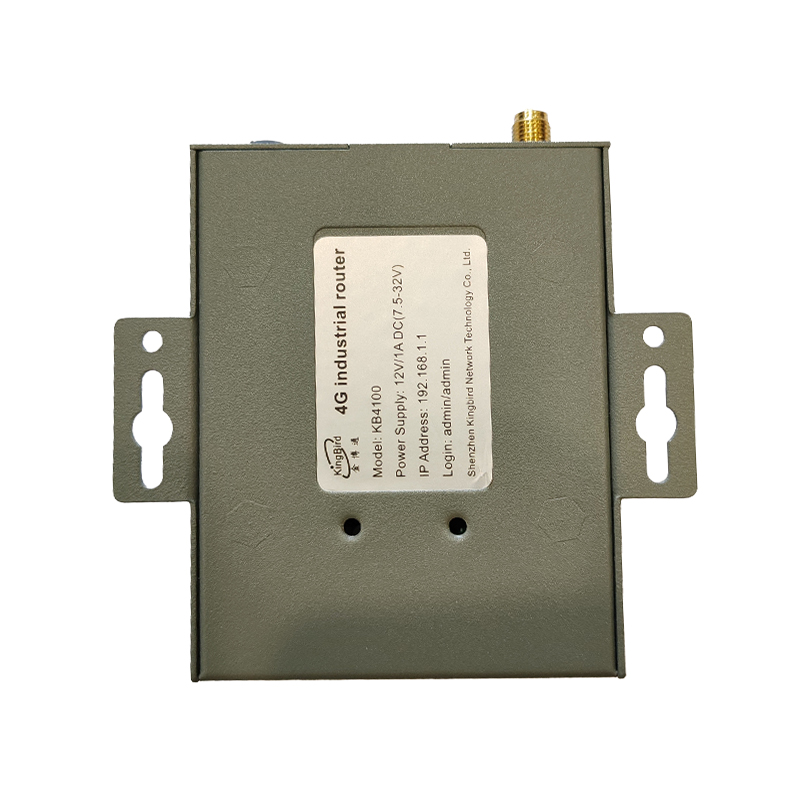

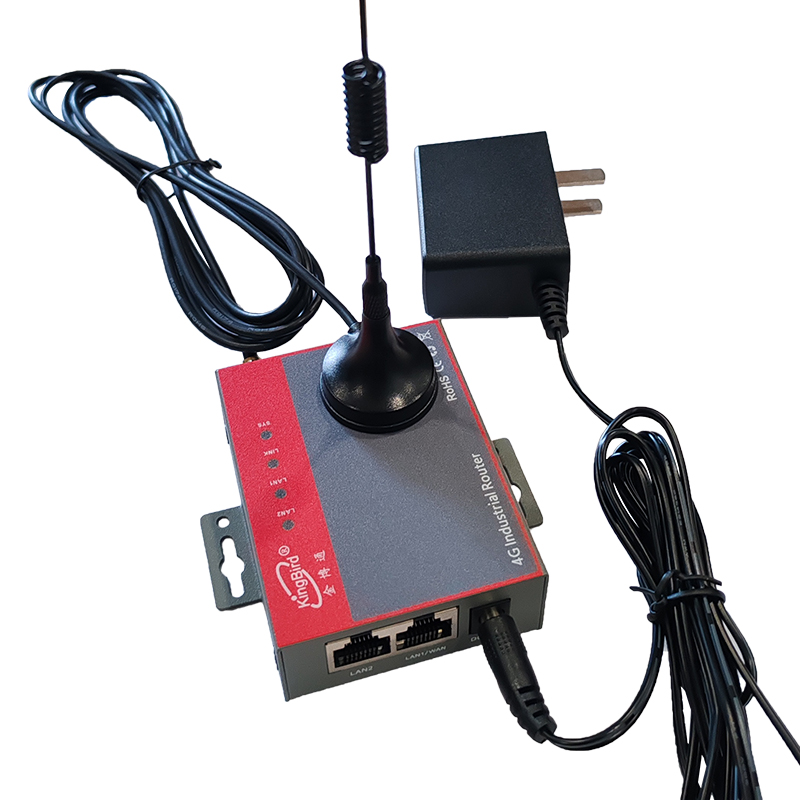

KB4100 4G Industrial Router
- Detail
Software functionality
Hardware parameters and interface description
Indicator light description
| Internet access | 3g/4g dial-up internet dhcp/static ip/pppoe |
| Operating system requirements | Windows xp/7/10 , linux 2.6 and above Mac os : 10.3.7 and above |
| Internal network (lan) | Intranet settings: You can change the gateway address of the router Dhcp server : Supports up to 253 lan ip address assignments, or you can manually set a fixed ip address. |
Hardware parameters and interface description
| External network (wan) | Extranet settings: Supports multiple connection types: Ipoe (dynamic), ipoe (static), pppoe, pptp, l2tp. Ipv6 settings Port forwarding: Access information can be directed to a fixed port to achieve remote access to the lower computer function. Isolation zone (dmz): When the open port of the virtual server to be set up is uncertain, it can be set up as a dmz host. Dynamic domain name resolution (ddns): Allows you to access your internal network via a domain name on the web even if you don't have a static ip address. |
| Firewalls | General settings: Activate the firewall to protect the internal network from hackers Web site filtering: Prohibit access to certain web sites Mac access control: The ability to control the network access behavior of a specific network card address (mac). Web service filtering: Used to filter specific web services. |
| Usb applications | 3g/4g modem:I.e. 3g/4g settings, can be set to specify apn or vpdn, or manually select the network. |
| Wlan security mode |
Open system Wpa-psk Wpa2-psk Wpapsk Wpa2psk (i.e. Wpa-psk and wpa2-psk mixed mode) Wpa1wpa2 (i.e. Wpa and wpa2 mixed mode) |
| Main chip | Mtk7628n |
| Connection with high-ranking officials | Sma external rotation bore |
| External interface |
Lan ports: 2 (lan1 is wan/lan adaptive) sim card slot: 1 Antenna interface: 2 Indicator lights: 4 dc power supply interface: 1 dc2.1 power interface Reset key: 1 |
Indicator light description
