Model

KB05HP01

Product Name

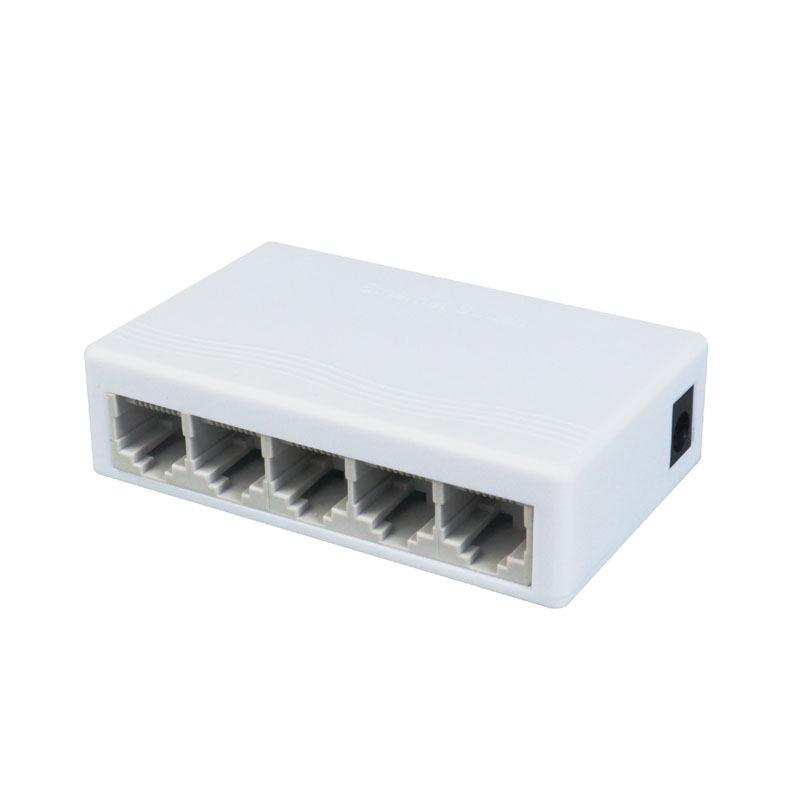

5-port 100Mbps switch

Fixed port

5*10/100Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX

Network port characteristics

10/100BaseT（X） Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

1Gbps （ non-blocking ）

Packet forwarding rate

0.72Mpps

MAC address table

1K

Packet forwarding cache

768K

Twisted pair transmission

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

Power Consumption

standby power ：≤3W；

LED indicator lamp

PWR: Power indicator light

1-5：（ Network indicator light ）；

Power supply

External switch power supply DC：5V

Working temperature/humidity

-10～+55°C；5%～90% RH No condensation

Storage temperature/humidity

-40～+75°C；5%～95% RH No condensation

Product /packaging size（L*W*H）

80mm*52mm*22mm

88mm*75mm55mm

Net /Gross weight （kg）

45g/122g

Installation method

Desktop style

safety certification

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty period

Complete machine for 3 years (excluding accessories)
