Model

KB05HM01

product name

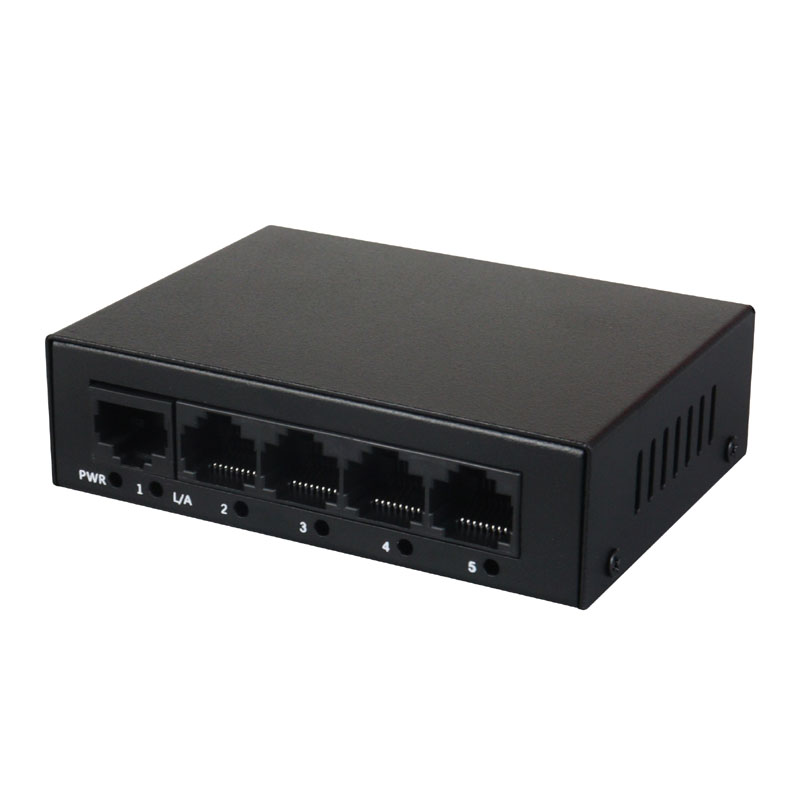

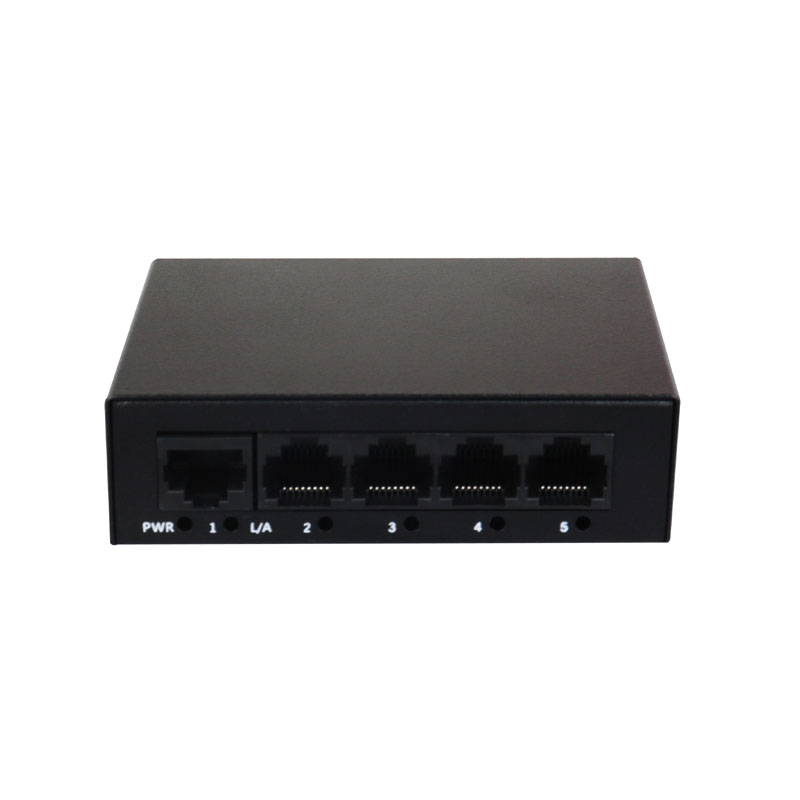

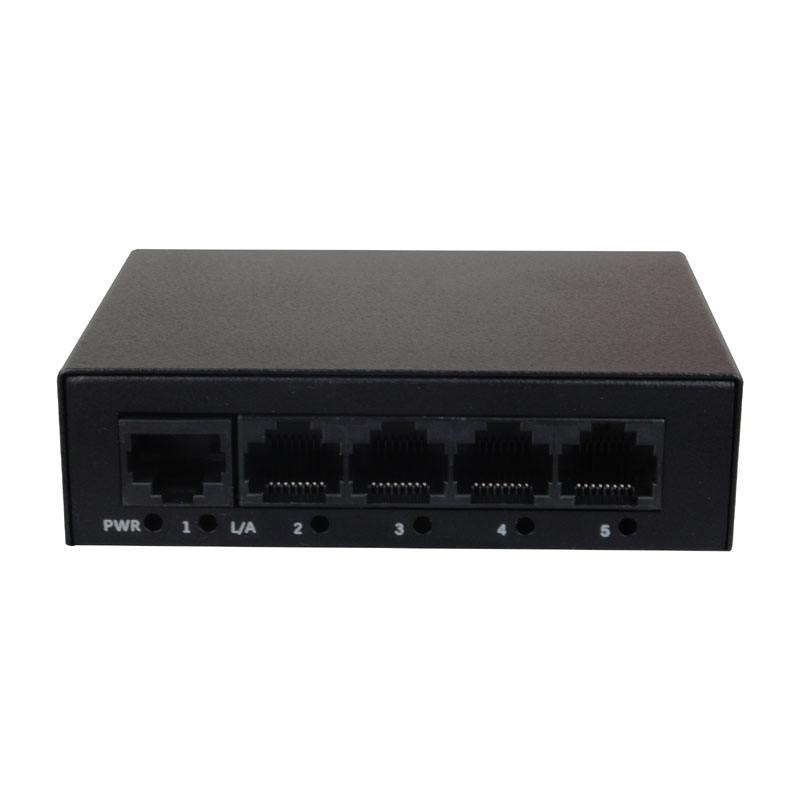

5-port 100Mbps switch

Fixed port

5*10/100Base-TX RJ45 (Data)

network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX

Network port characteristics

10/100BaseT（X）  Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

backplane bandwidth

1Gbps （ non-blocking）

packet forwarding rate

0.72Mpps

MAC address table

1K

Packet forwarding cache

768K

Twisted pair transmission

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

Overall Power Consumption

standby power：≤3W；

indicator lamp

PWR: Power indicator light

1-5：（ Network indicator light）；

Supporting power supply

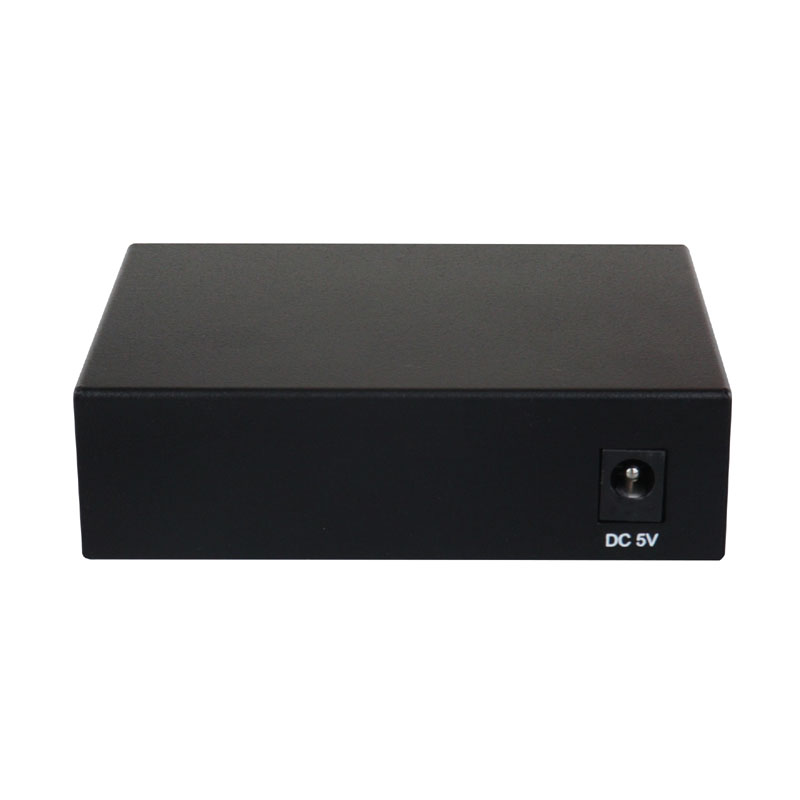

External switch power supply DC：5V

Working temperature/humidity

-10～+55°C；5%～90% RH No condensation

Storage temperature/humidity

-40～+75°C；5%～95% RH

Product /packaging size（L*W*H）

80mm*66mm*25mm

102mm*75mm*65mm

Net weight/Gross weight（kg）

122g/192g

Installation method

Desktop style

protection grade

IP30

safety certification

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty period

Complete machine for 3 years (excluding accessories)
