Model

KB08HP01

Product Name

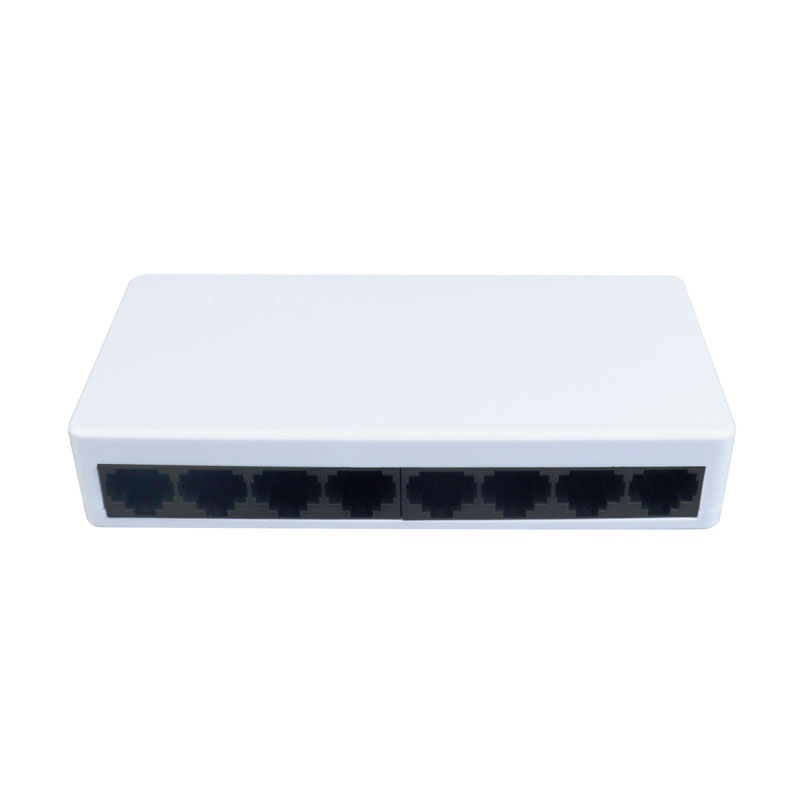

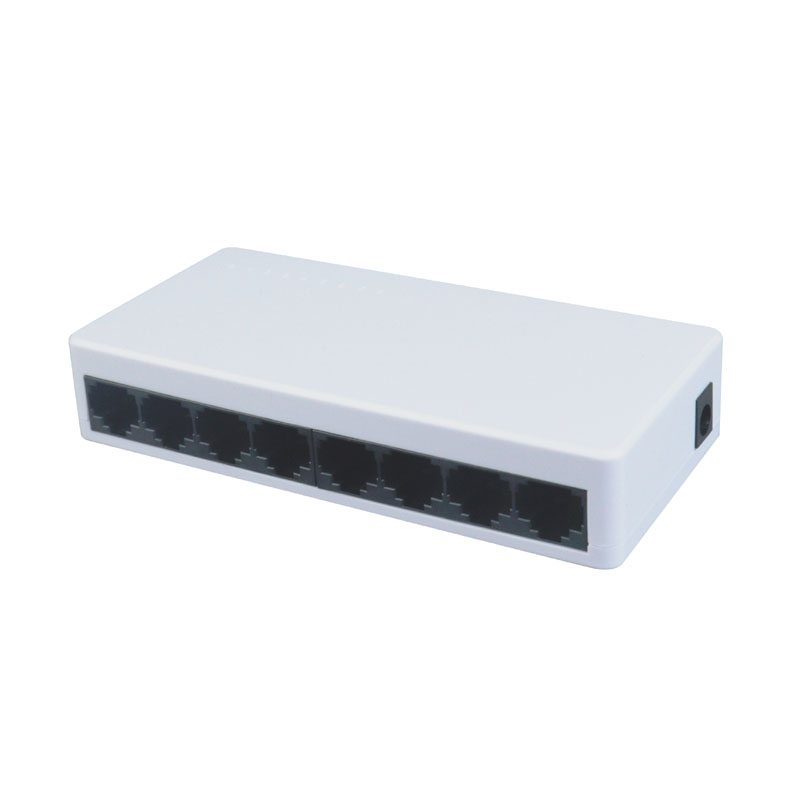

8-port 100Mbps switch

Fixed port

8 * 10/100Base-TX RJ45 (Data)

Network protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3x

Network port characteristics

10/100BaseT（X） Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

1.6Gbps （non-blocking ）

Packet forwarding rate

1.15Mpps

MAC address table

1K

Packet forwarding cache

768K

Twisted pair transmission

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

Power Consumption

standby power ≤3W；

LED indicator lamp

PWR: Power indicator light

1-8: Network indicator light

Power supply

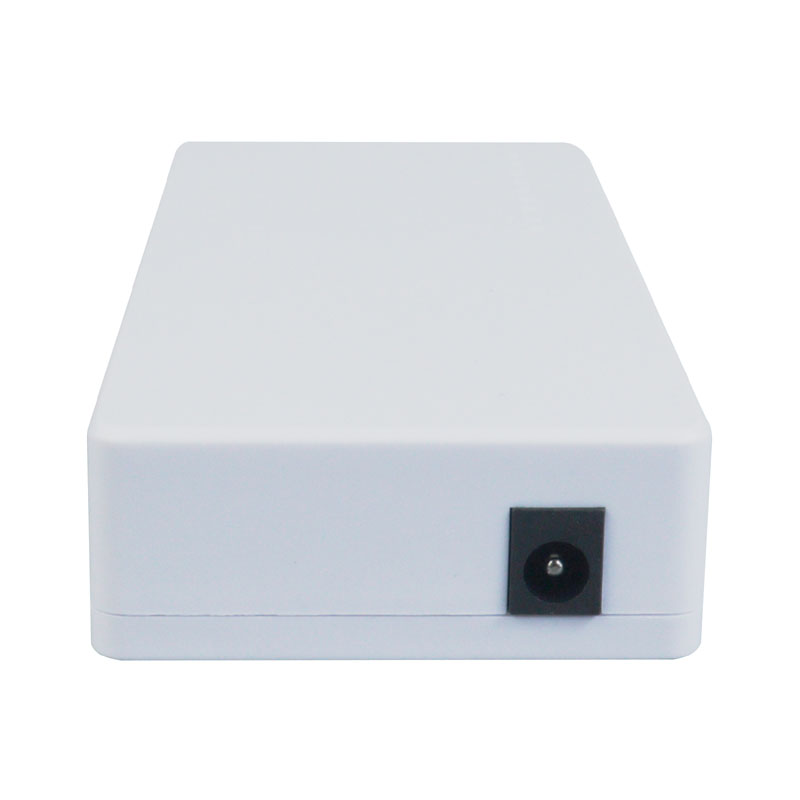

External switch power supply  DC：5V

Working temperature/humidity

-10～+55°C；5%～90% RH  No condensation

Storage temperature/humidity

-40～+75°C；5%～95% RH  No condensation

Product /packaging size（L*W*H）

123mm*55mm*22mm

132mm*75mm*60mm

Net /Gross weight （kg）

68g/153g

Installation method

Desktop style

Safety certification

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B；RoHS;

Warranty period

Complete machine for 3 years (excluding accessories)
