Model

KB05KM01

Product Name

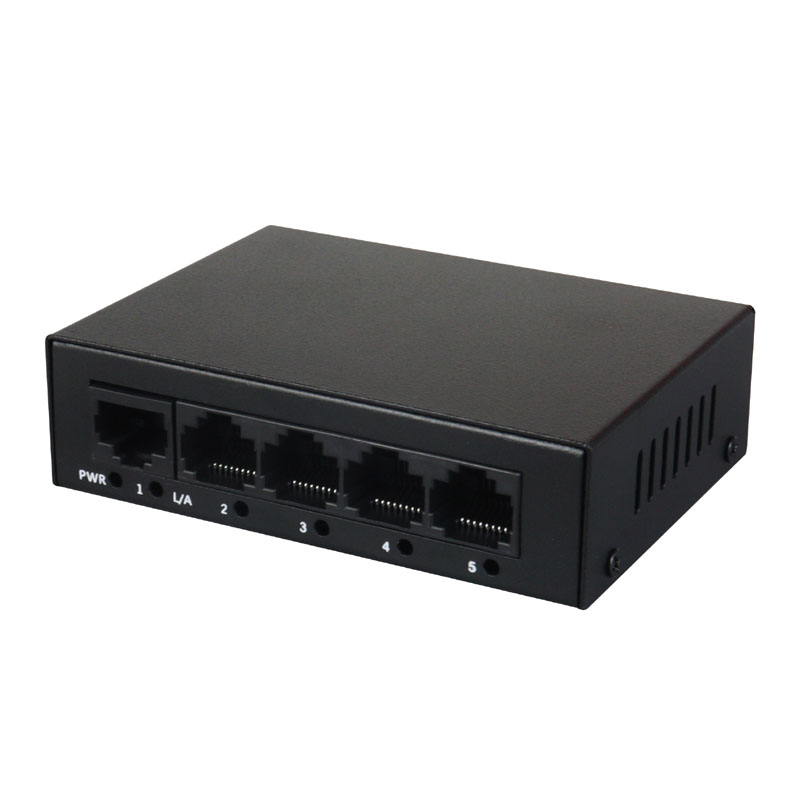

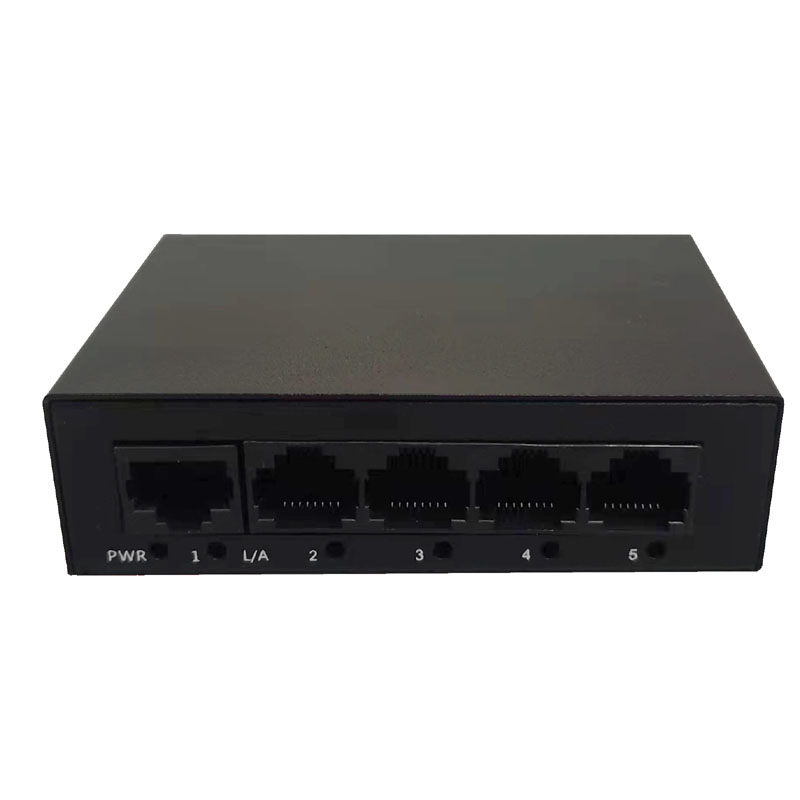

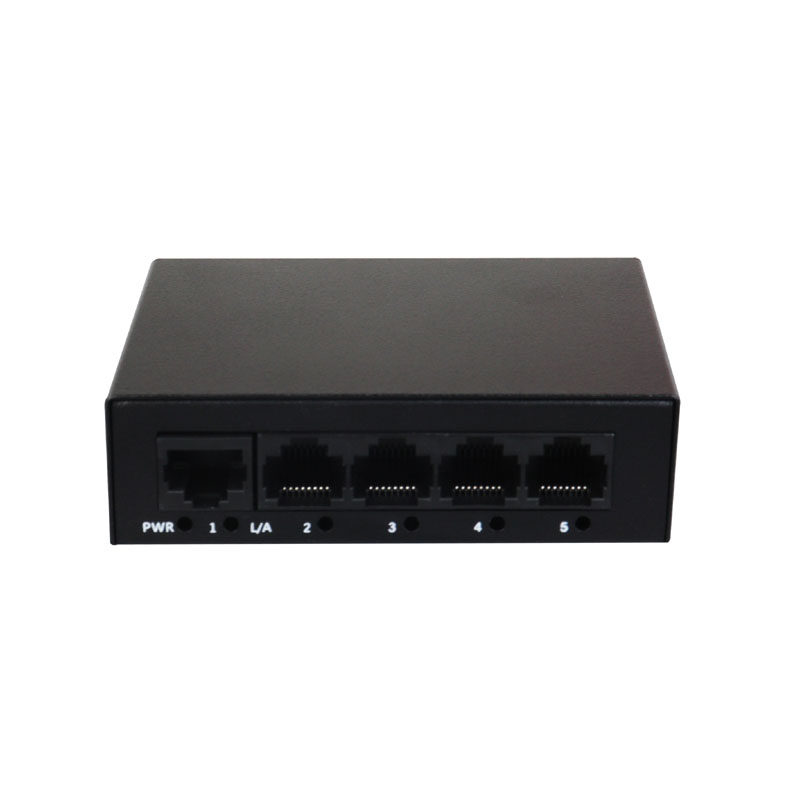

5-port gigabit switch

Fixed port

5* 10/100/1000Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

Network port characteristics

10/100/1000BaseT（X）Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

10Gbps （non-blocking）

Packet forwarding rate

7.2Mpps

Support 9K jumbo frame transmission

MAC address table

2K

Packet forwarding cache

2.5M

Twisted pair transmission

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

Power Consumption

standby power ≤5W;

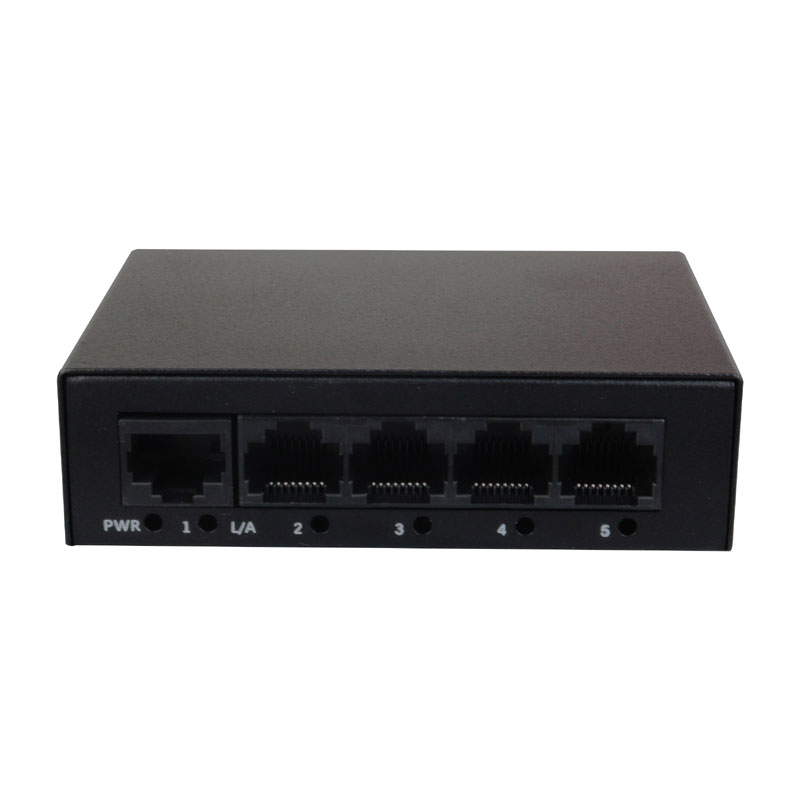

LED indicator lamp

PWR: Power indicator light

1-5: Network indicator light

Power supply

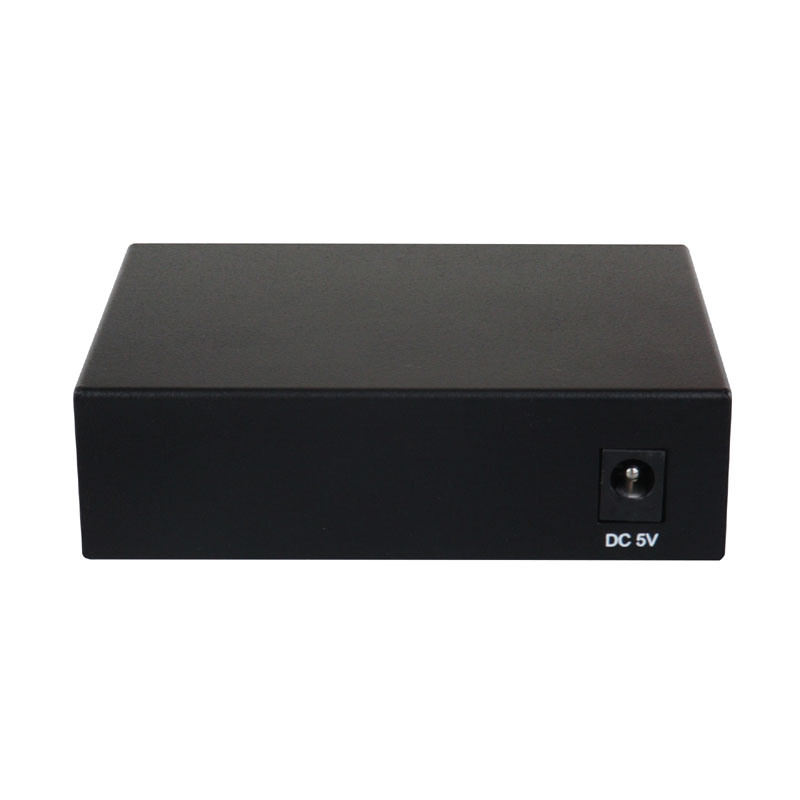

External switch power supply DC:5V

Working temperature/humidity

-10～+55°C;5%～90% RH No condensation

Storage temperature/humidity

-40～+75°C;5%～95% RH No condensation

Product /packaging size（L*W*H）

80mm*66mm*25mm

102mm*75mm*65mm

Net /Gross weight （kg）

122g/192g

Installation method

Desktop style

protection grade

IP30

safety certification

CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;

Warranty period

Complete machine for 3 years (excluding accessories)
