Model

KB05KP01

Product Name

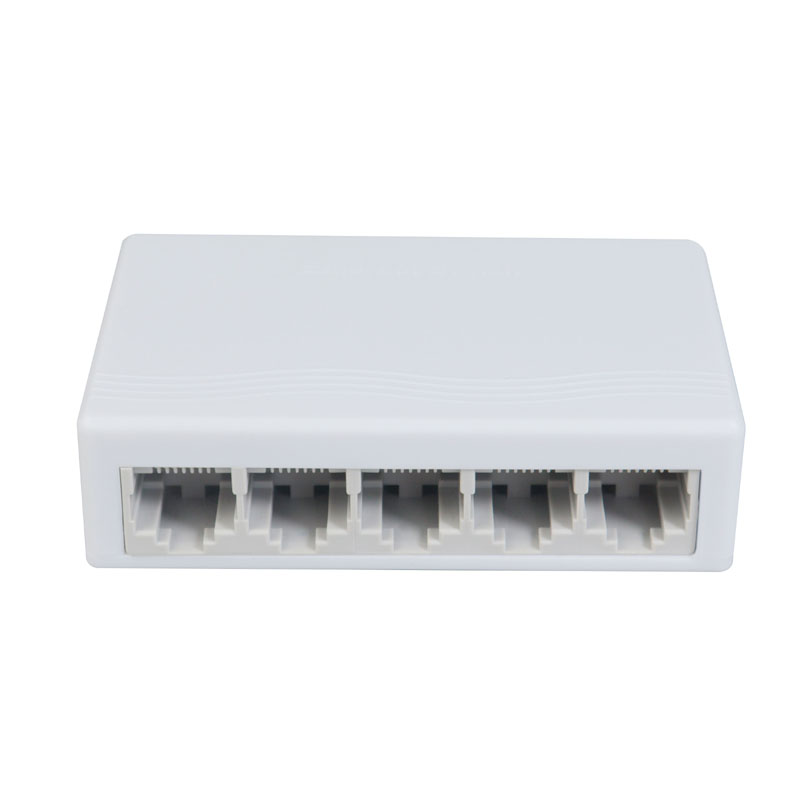

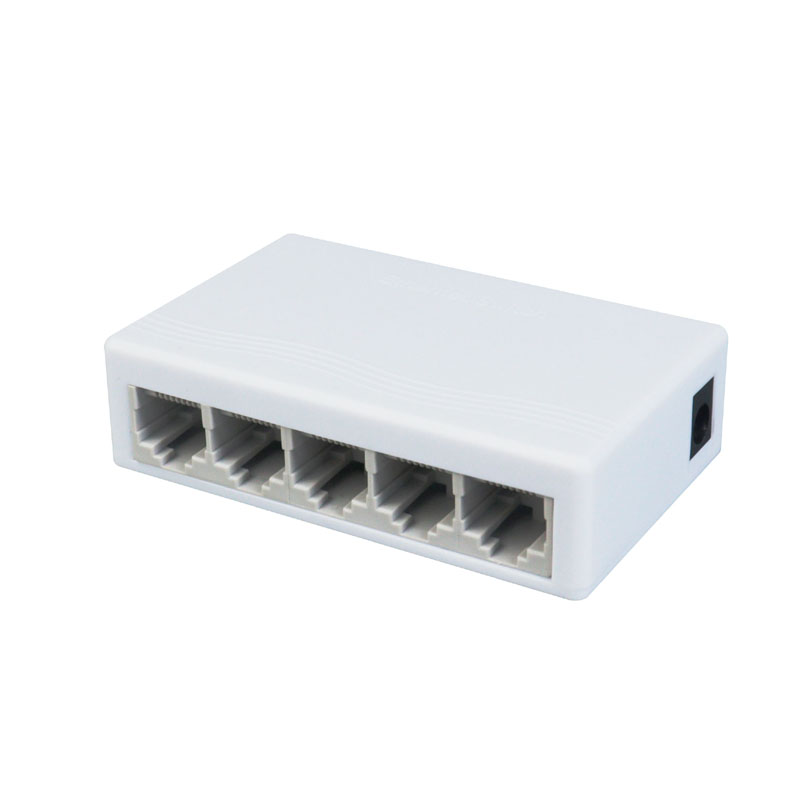

5-port Gigabit Mini Switch

Fixed port

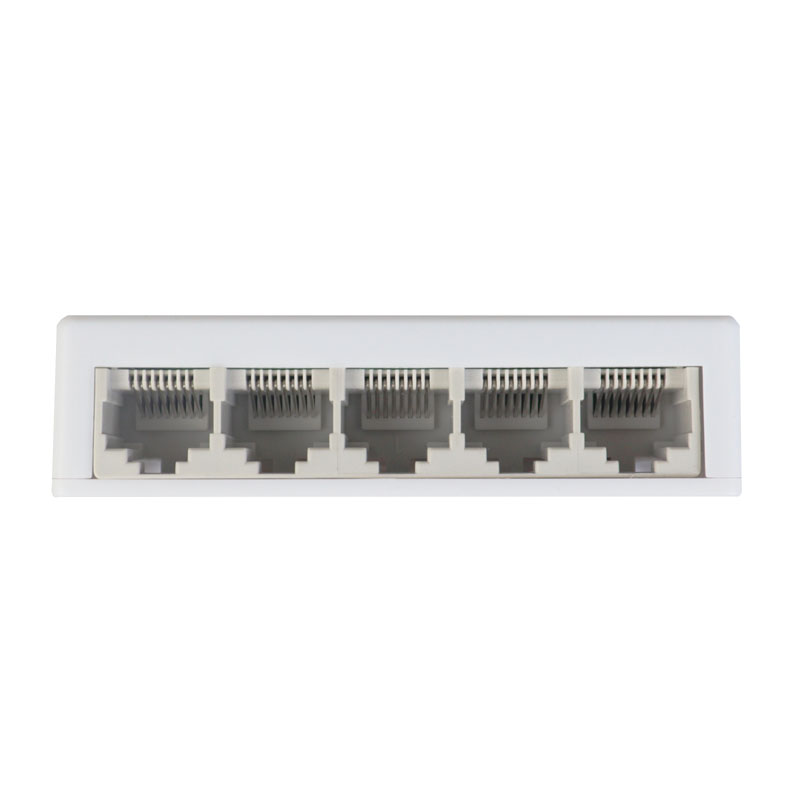

5*10/100/1000Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

Network port characteristics

10/100/1000BaseT（X） Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

10Gbps （ non-blocking ）

Packet forwarding rate

7.2Mpps

Support 9K jumbo frame transmission

MAC address table

2K

Packet forwarding cache

2.5M

Twisted pair transmission

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(150 meter)

Power Consumption

standby power ≤5W；

LED indicator lamp

PWR: Power indicator light

1-5: Network indicator light

Power supply

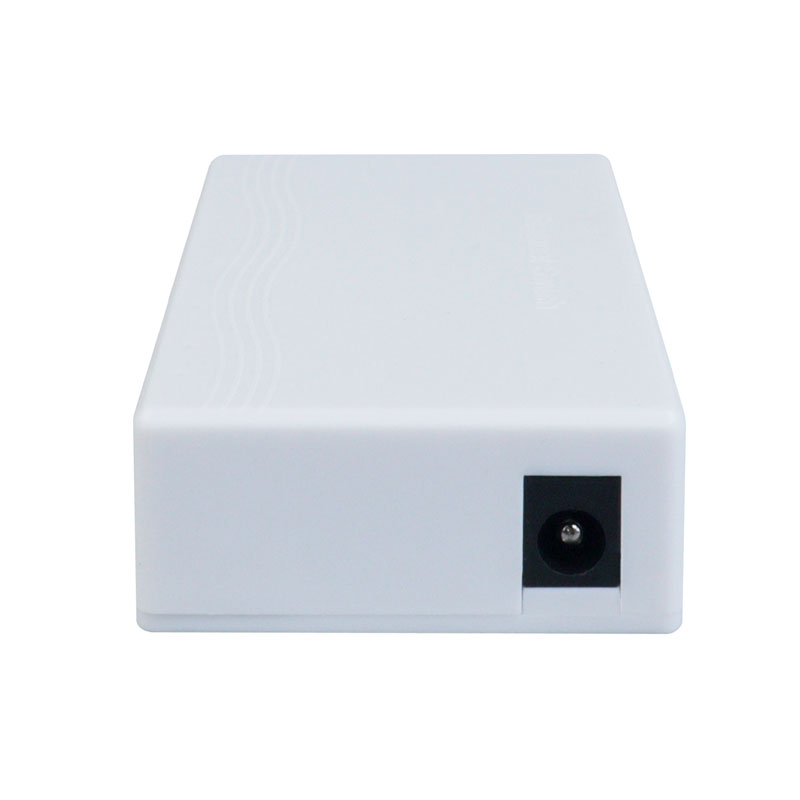

External switch power supply DC：5V

Working temperature/humidity

-10～+55°C；5%～90% RH No condensation

Storage temperature/humidity

-40～+75°C；5%～95% RH No condensation

Product /packaging size（L*W*H）

80mm*52mm*22mm

88mm*75mm55mm

Net /Gross weight （kg）

45g/122g

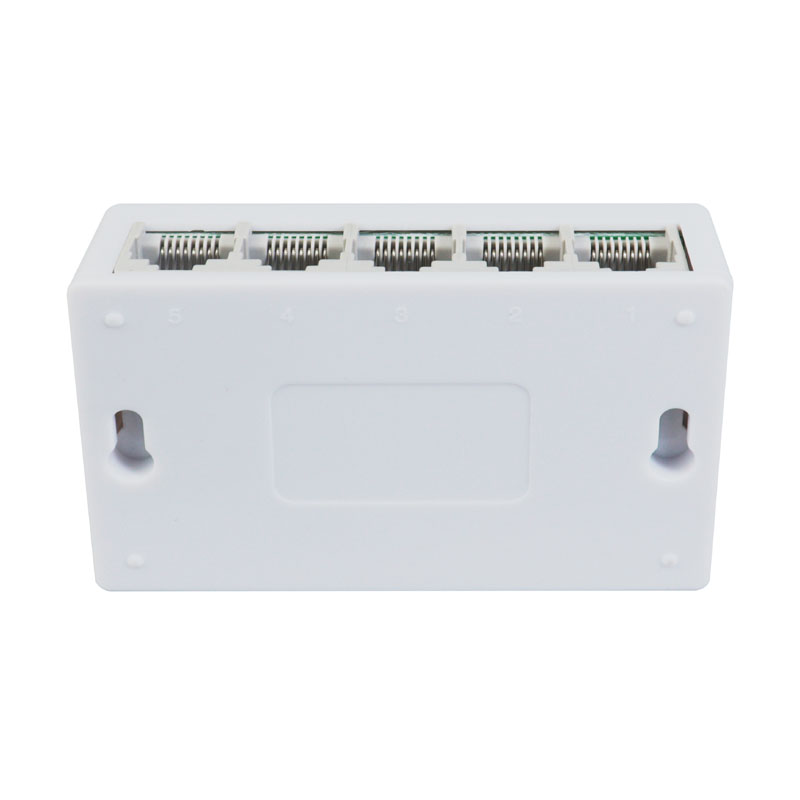

Installation method

Desktop style

protection grade

IP30

safety certification

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty period

Complete machine for 3 years (excluding accessories)
